Manifold Absolute Pressure Sensor Replacement

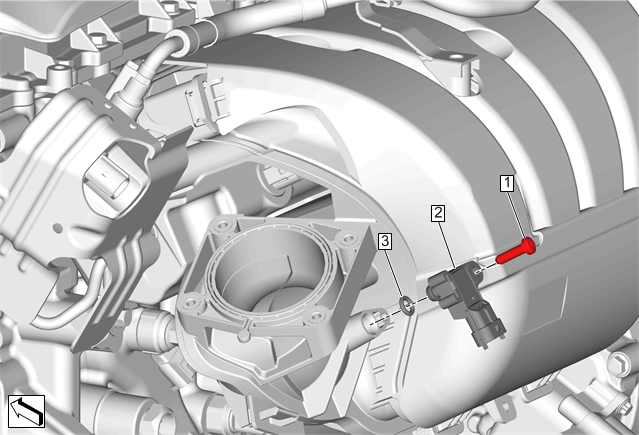

Callout	Component Name
Preliminary Procedures Throttle Body Assembly Replacement Disconnect the electrical connector.
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Manifold Absolute Pressure Sensor Procedure Perform the intake system learned values reset. Intake System Learned Values Reset
3	Manifold Absolute Pressure Seal Procedure The seal is reusable, inspect the seal and replace if damaged.
