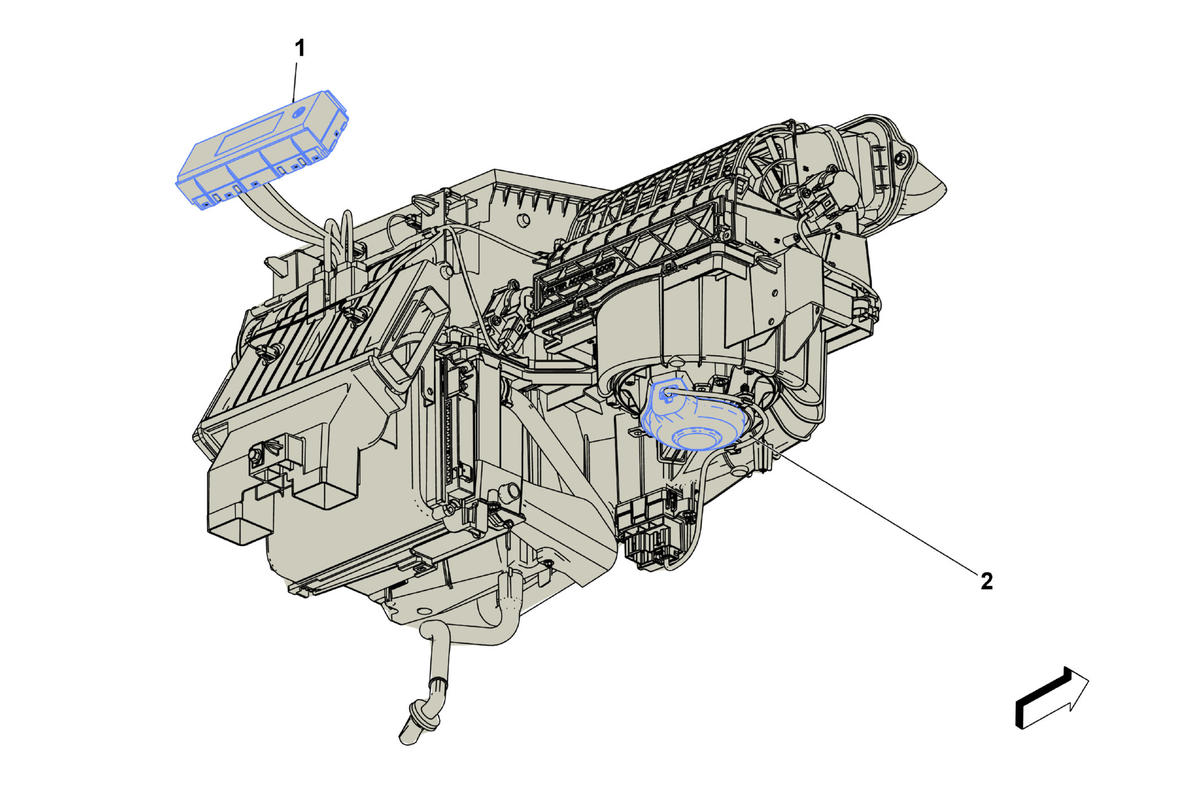

HVAC Components (Trax, 1 of 2)

GM4555305Courtesy of GENERAL MOTORS COMPANY
Items
1 K33 HVAC Control Module K33 HVAC Control Module X1
2 M8 Blower Motor M8 Blower Motor
