Front of Vehicle Components (Trax)

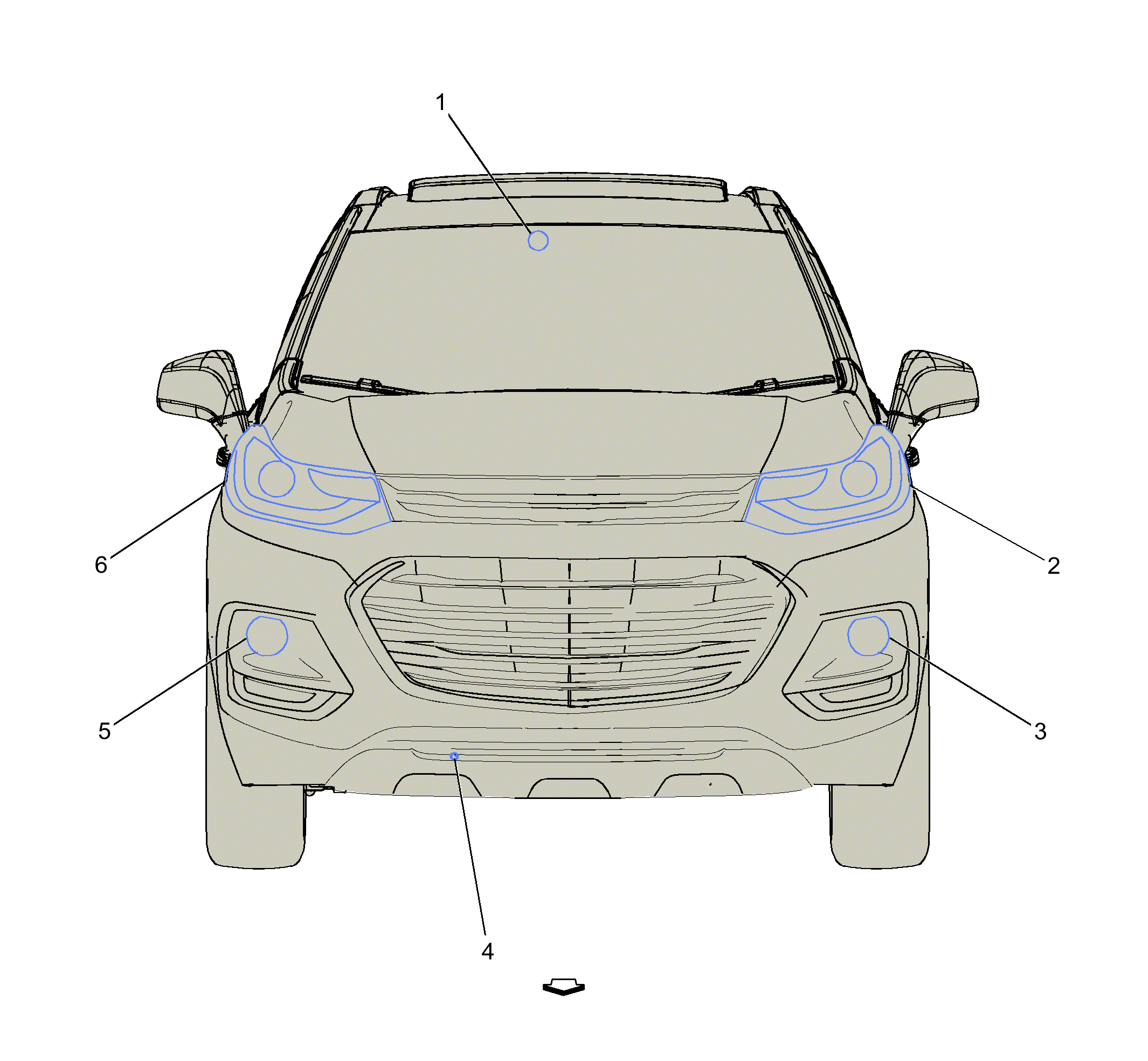

GM4693730Courtesy of GENERAL MOTORS COMPANY
Items
1 K109 Frontview Camera Module (UFL) K109 Frontview Camera Module
2 E13LA Headlamp Assembly - Left
3 E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front
4 B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
5 E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front
6 E13RA Headlamp Assembly - Right
