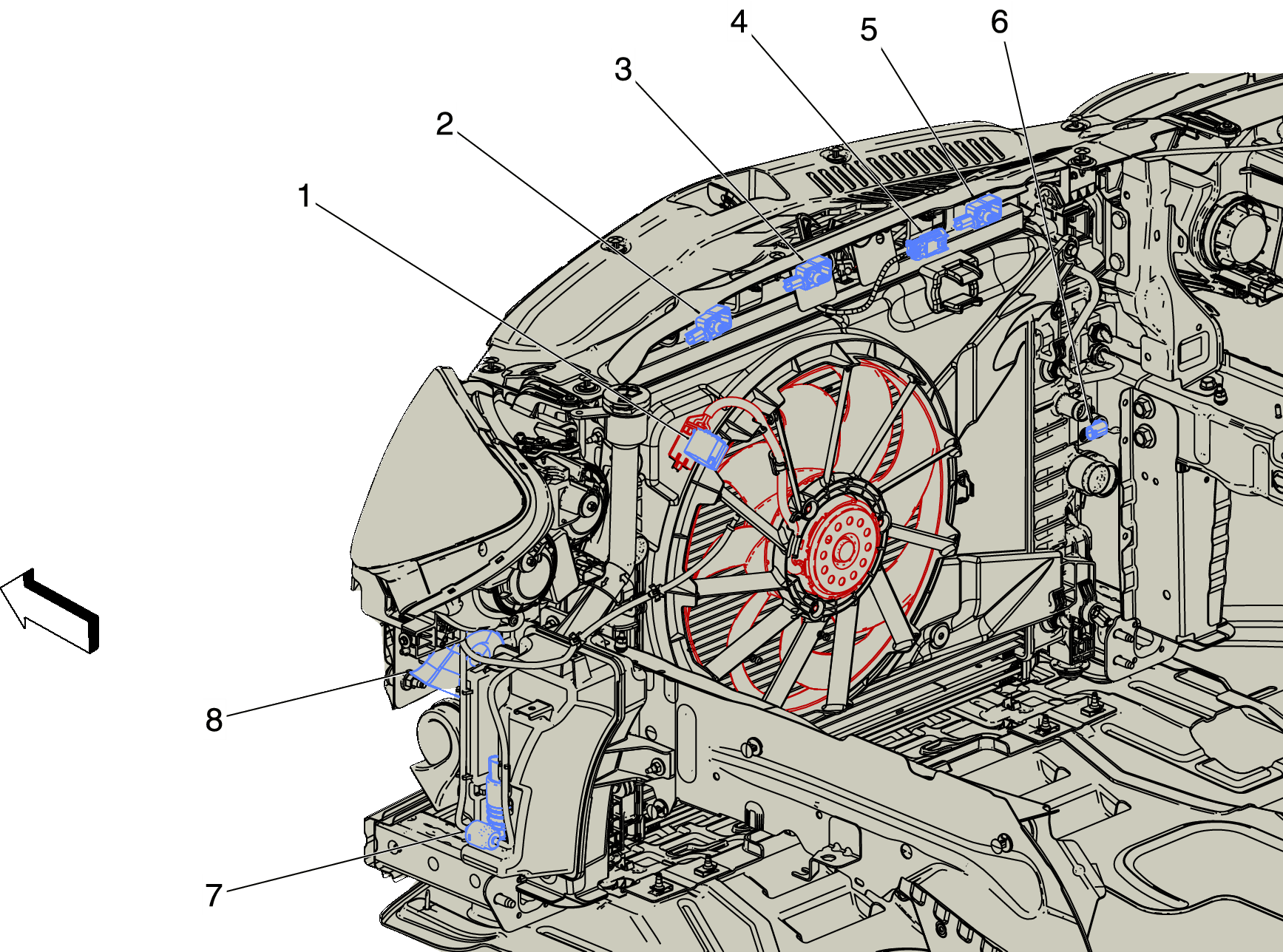

Front of Engine Compartment Components (Trax)
| Items |
|---|
| 1 R10 Cooling Fan Resistor R10 Cooling Fan Resistor (LUV) |
| 2 B59L Front Impact Sensor - Left (AYF) |
| 3 B59 Front Impact Sensor (ADL/AYC) |
| 4 B55 Engine Hood Switch (BTV/UTJ) B55 Engine Hood Switch |
| 5 B59R Front Impact Sensor - Right (AYF) |
| 6 B203 Engine Coolant Radiator Temperature Sensor B203 Radiator Coolant Temperature Sensor |
| 7 G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 8 P12B Horn - Low Note P12B Horn - Low Note |
