Engine Oil Pressure Sensor Replacement

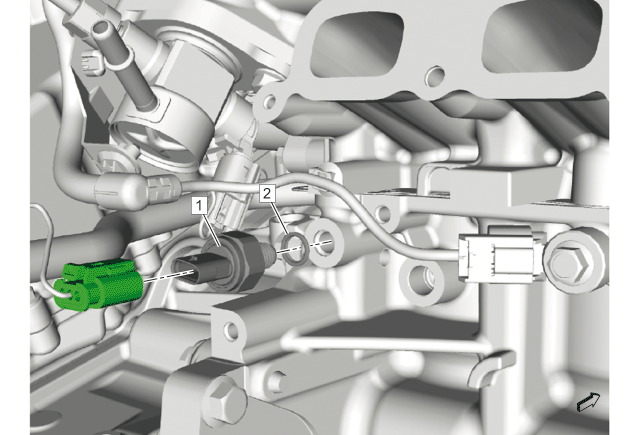

GM4091331Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Intake Manifold Replacement
1 Engine Oil Pressure Sensor
CAUTION:

Fastener Caution


Procedure
Disconnect the electrical connectors.
Tighten
35 N.m (26 lb ft)
2 Engine Oil Pressure Sensor Seal
