Exhaust Gas Recirculation Pipe Replacement

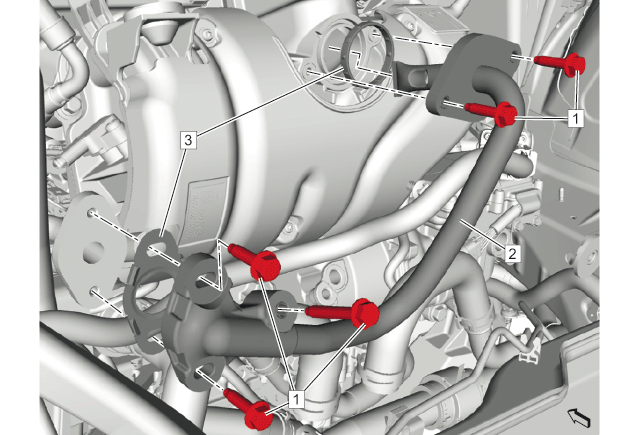

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Duct Replacement |
|
| 1 | Exhaust Gas Recirculation Pipe Bolt [5x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Gas Recirculation Pipe |
| 3 | Exhaust Gas Recirculation Pipe Gasket [2x] |
