Instrument Panel Center Accessory Function Switch Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Plate Replacement

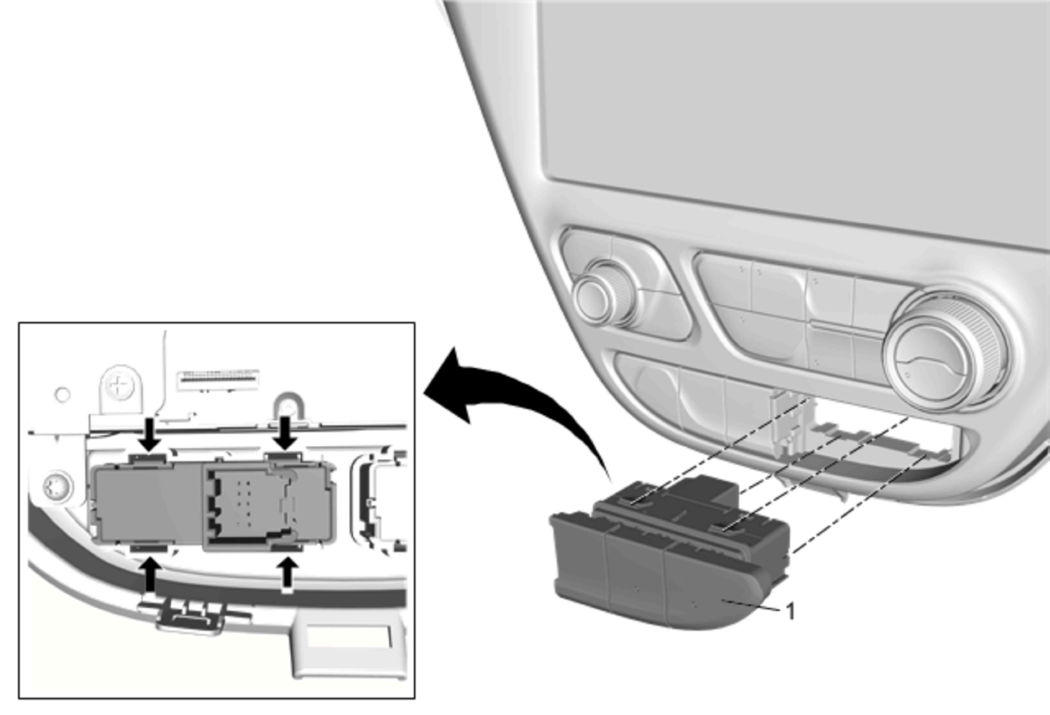

1	Instrument Panel Center Accessory Function Switch Procedure Release the tabs and remove the switch.
