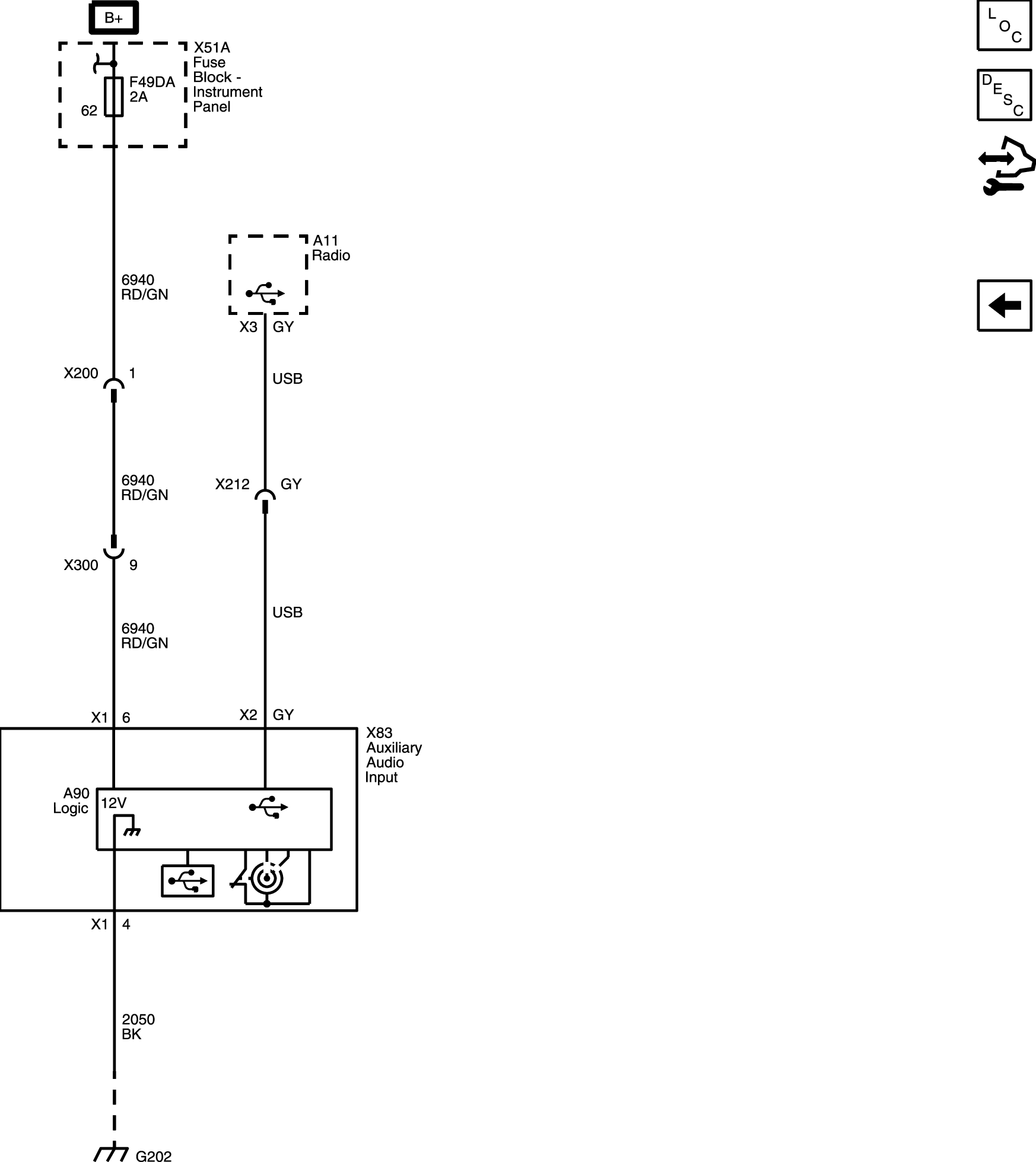

Auxiliary Input

WARNING: This page is about a different car, the 2018 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.
GM4810953Courtesy of GENERAL MOTORS COMPANY
