Hybrid/EV Transmission Drive Unit

GM4539823Courtesy of GENERAL MOTORS COMPANY

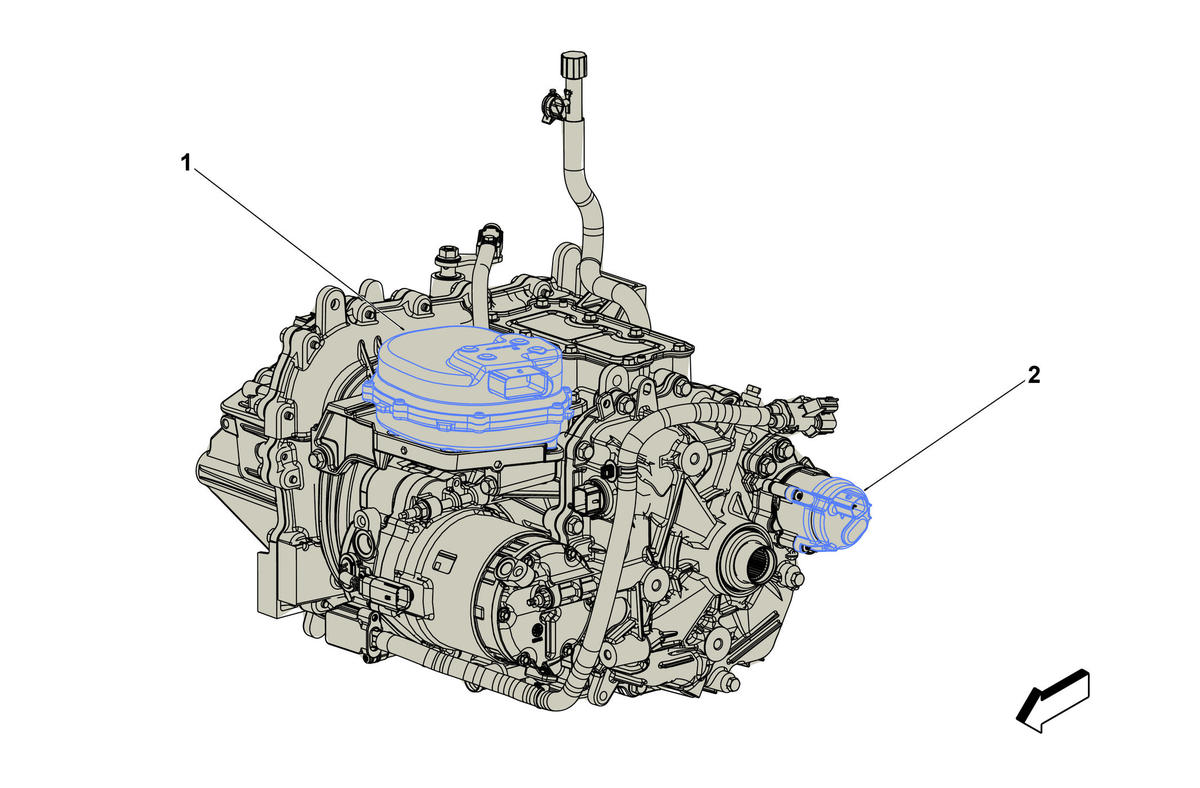

Hybrid/EV Transmission Drive Unit

Items
1. K173 Transmission Range Control Module K173 Transmission Range Control Module ()
2. G5 Transmission Fluid Pump - Electric/Auxiliary G5 Transmission Fluid Pump - Electric/Auxiliary
