Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

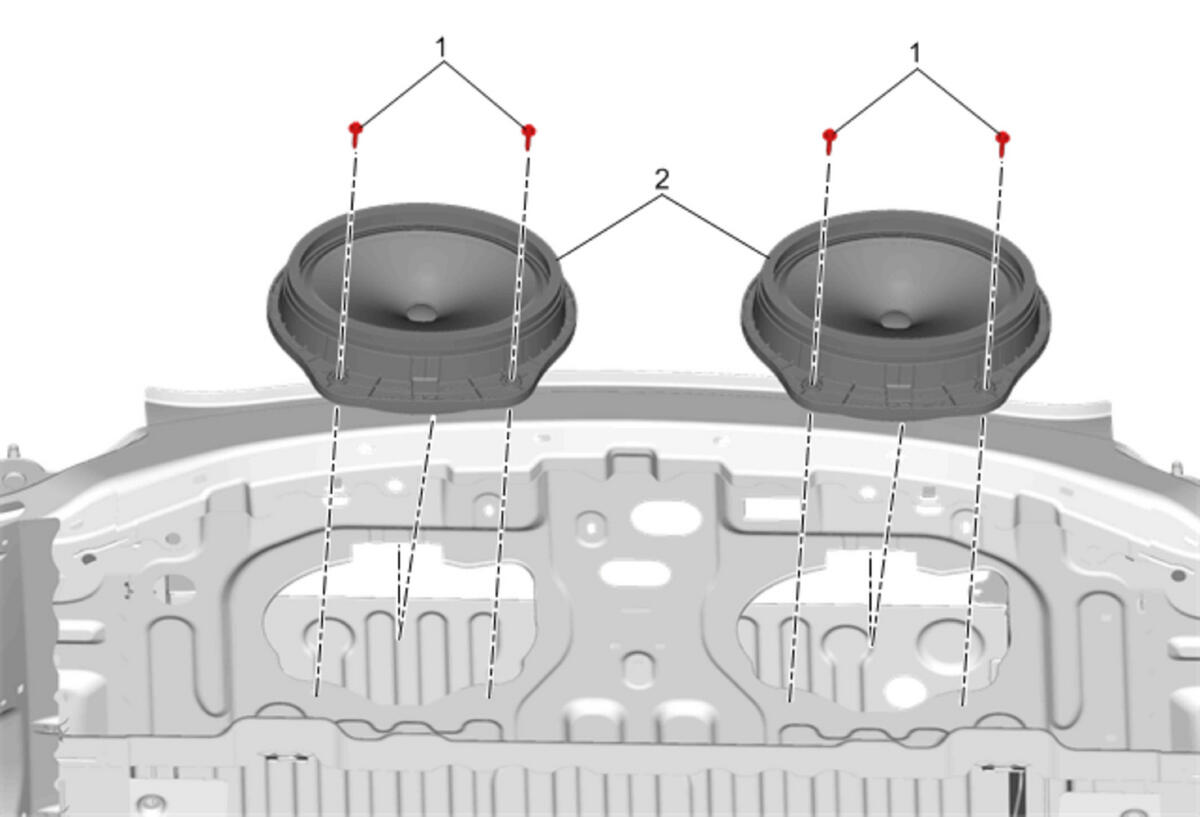

Callout	Component Name
Preliminary Procedure Rear Window Panel Trim Replacement .
1	Radio Rear Speaker Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Rear Speaker Procedure Disconnect the harness retainer and electrical connector from the speaker through the rear compartment. Use a trim tool to disengage the metal clip from the speaker. Remove the speaker by manipulating and pulling speaker up and towards center.

Callout

Component Name

Preliminary Procedure
Rear Window Panel Trim Replacement .

Radio Rear Speaker Fastener [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Rear Speaker

Procedure

Disconnect the harness retainer and electrical connector from the speaker through the rear compartment.
Use a trim tool to disengage the metal clip from the speaker.
Remove the speaker by manipulating and pulling speaker up and towards center.
