Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

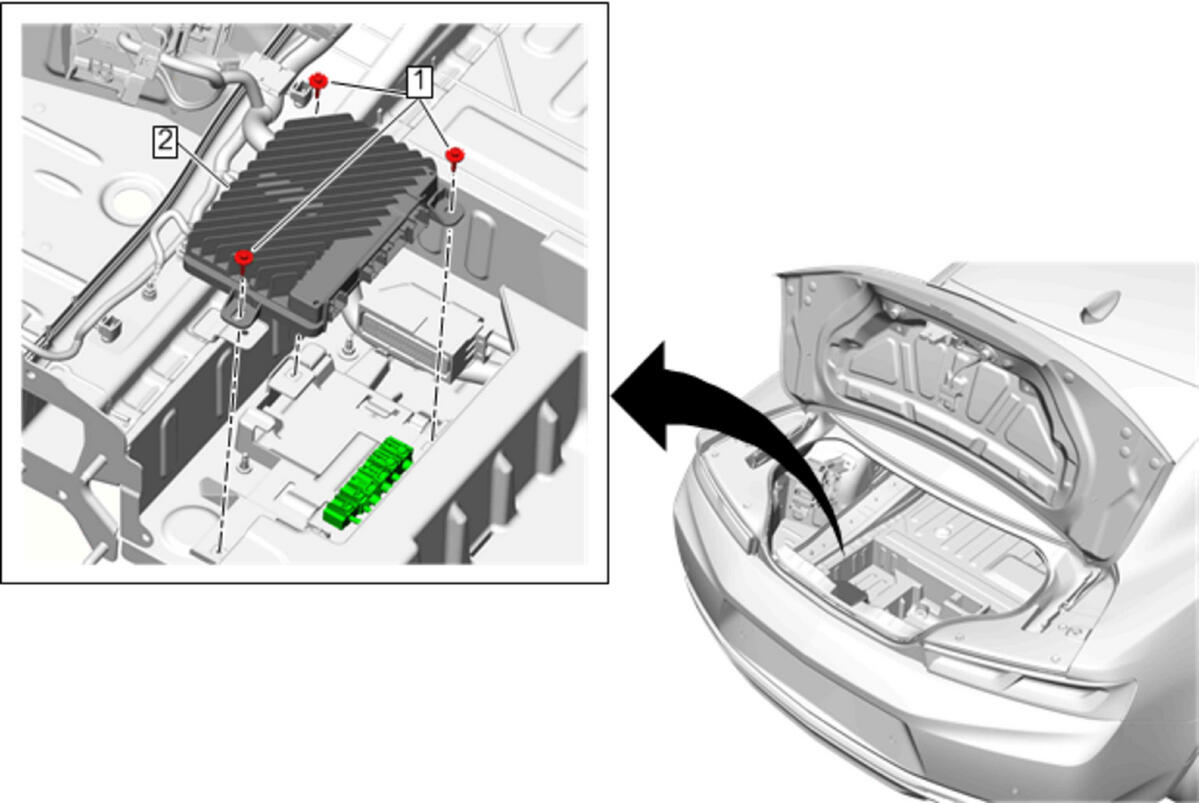

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side (Coupe)Rear Compartment Side Trim Replacement - Left Side (Convertible)
1	Radio Speaker Amplifier Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Left Side (Coupe)Rear Compartment Side Trim Replacement - Left Side (Convertible)

Radio Speaker Amplifier Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Control Module References for programming and set up procedures, if required.
