Automatic Transmission Case Components (MGL)

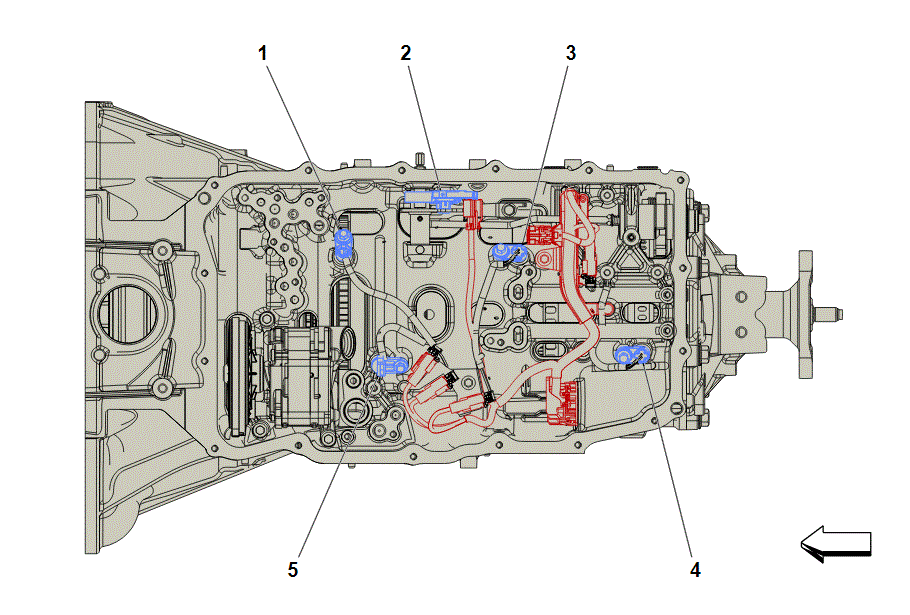

GM4910892Courtesy of GENERAL MOTORS COMPANY
Items
1. B14DB Transmission Intermediate Speed Sensor 2 (MF6/MGL) B14DB Transmission Intermediate Speed Sensor 2 (MGL/MF6)
2. B15 Transmission Internal Mode Switch (M5T) B15 Transmission Internal Mode Switch (M5T)
3. B14DA Transmission Intermediate Speed Sensor 1 (MF6/MGL) B14DA Transmission Intermediate Speed Sensor 1 (MGL/MF6)
4. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor (MGL/MF6)B14A Transmission Output Shaft Speed Sensor (MN6)
5. B14C Transmission Input Shaft Speed Sensor (MF6/MGL/M5T) B14C Transmission Input Shaft Speed Sensor (M5T)B14C Transmission Input Shaft Speed Sensor (MGL/MF6)
