Headlamp Automatic Control Module Replacement
WARNING: This page is about a different car, the 2020 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

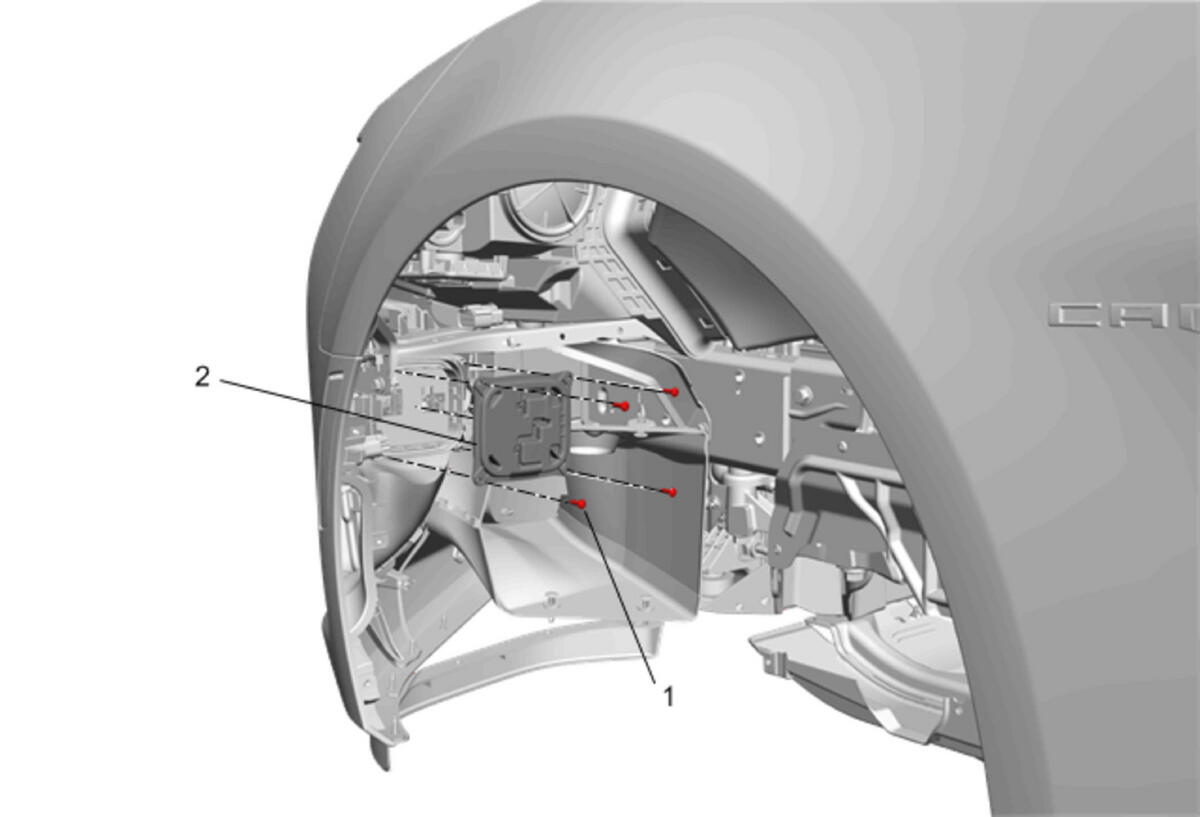

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (ZL1) |
|
| 1 | Headlamp Automatic Control Module Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Headlamp Automatic Control Module Procedure Pull the headlamp automatic control module straight out and disconnect the electrical connectors. |
