Digital Radio Transceiver Module Antenna Replacement (Convertible with U2Q)
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

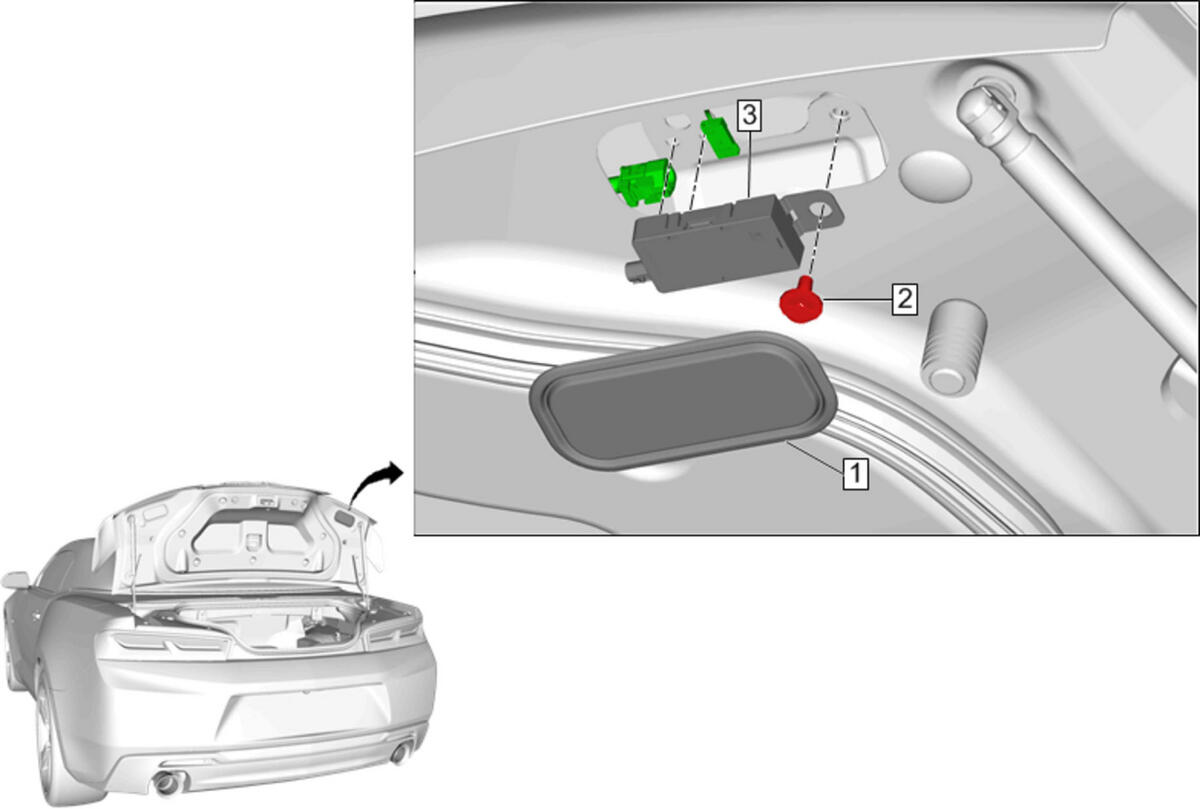

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Lid Inner Panel Access Hole Plug Procedure Use a flat bladed plastic tool to remove. |
| 2 | Radio Antenna Coil Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Digital Radio Transceiver Module Antenna Procedure Disconnect the electrical connectors. |
