Digital Radio Transceiver Module Antenna Replacement (Coupe)
WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

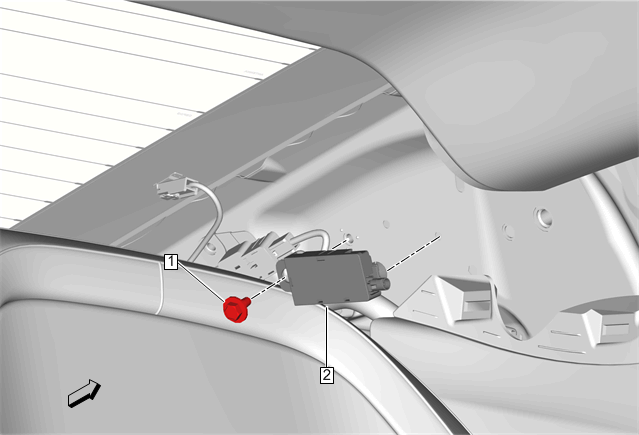

| Callout | Component Name |
|---|---|
| Preliminary Procedure Body Side Rear Window Garnish Molding Replacement |
|
| 1 | Radio Antenna Coil Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Digital Radio Transceiver Module Antenna Procedure Disconnect the electrical connector. |
