Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

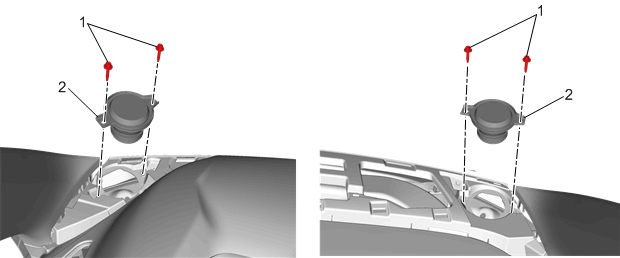

Callout	Component Name
Preliminary Procedure Instrument Panel Extension Replacement Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement
1	Radio Front Speaker Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Speaker [2x] Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Instrument Panel Extension Replacement
Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement

Radio Front Speaker Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Front Speaker [2x]
Procedure
Disconnect the electrical connector.
