Radio Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

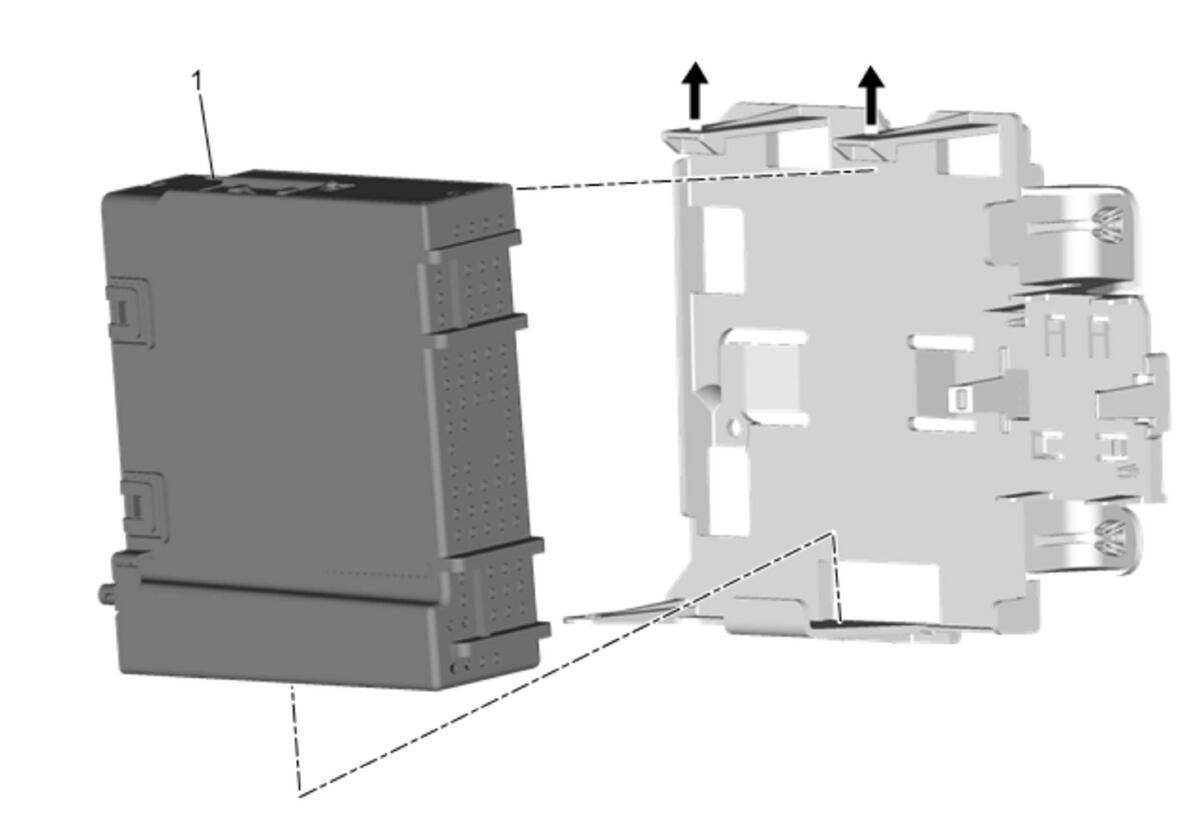

Callout	Component Name
Preliminary Procedure Radio Bracket Replacement
1	Radio CAUTION: When removing and installing the radio, use care not to damage the bracket retaining clips. If improperly installed, the bracket retaining clips may break or become damaged. Failure to follow this caution may result in a damaged bracket. Procedure Disconnect the electrical connectors. Using an appropriate tool, release the radio bracket tabs and slide radio out of the bracket. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Radio Bracket Replacement

Radio

CAUTION:

When removing and installing the radio, use care not to damage the bracket retaining clips. If improperly installed, the bracket retaining clips may break or become damaged. Failure to follow this caution may result in a damaged bracket.

Procedure

Disconnect the electrical connectors.
Using an appropriate tool, release the radio bracket tabs and slide radio out of the bracket.
Perform the necessary programming and setup procedure:Control Module References
