Vehicle Performance Global Positioning System Antenna Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

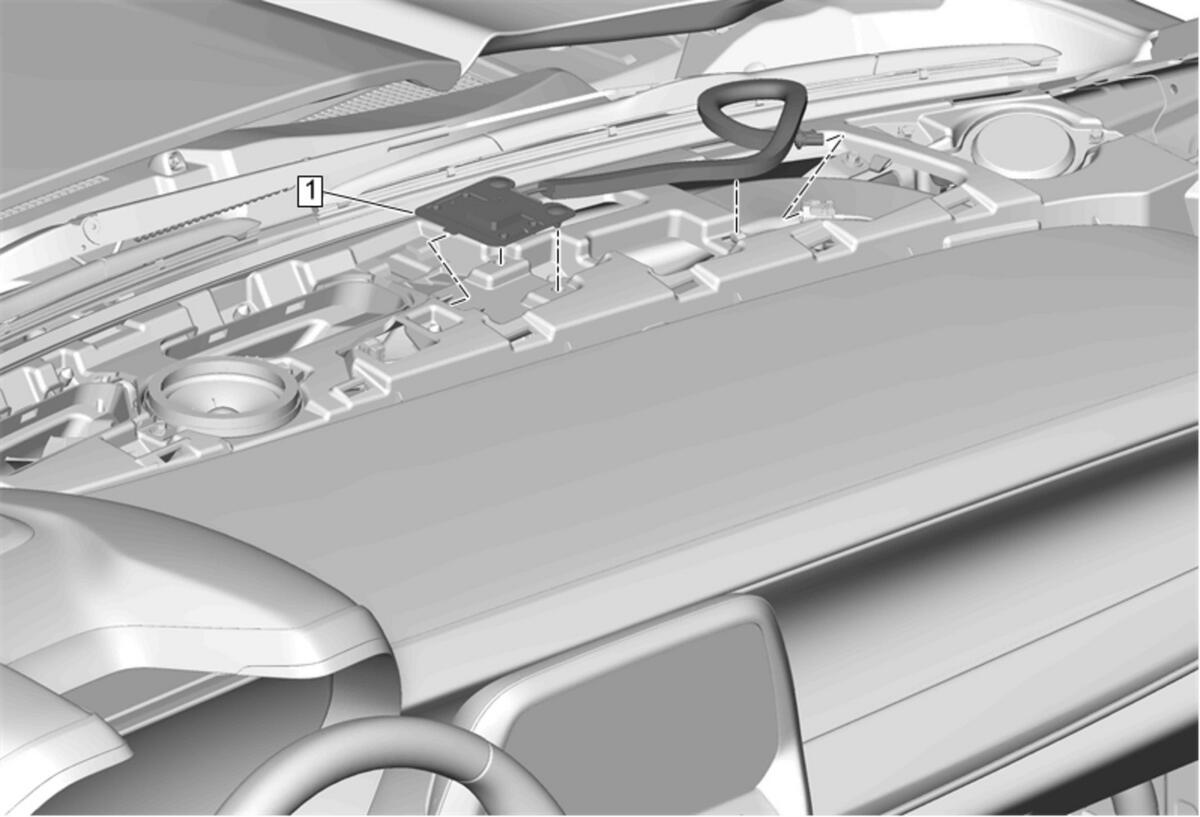

GM4743572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Extension Replacement
1 Vehicle Performance Global Positioning System Antenna

Procedure

  1. Release the two integral retainers and release the vehicle performance global positioning system antenna from the instrument panel upper trim panel cover.
  2. Disconnect the electrical connector.
