Pickup Box Endgate Latch Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

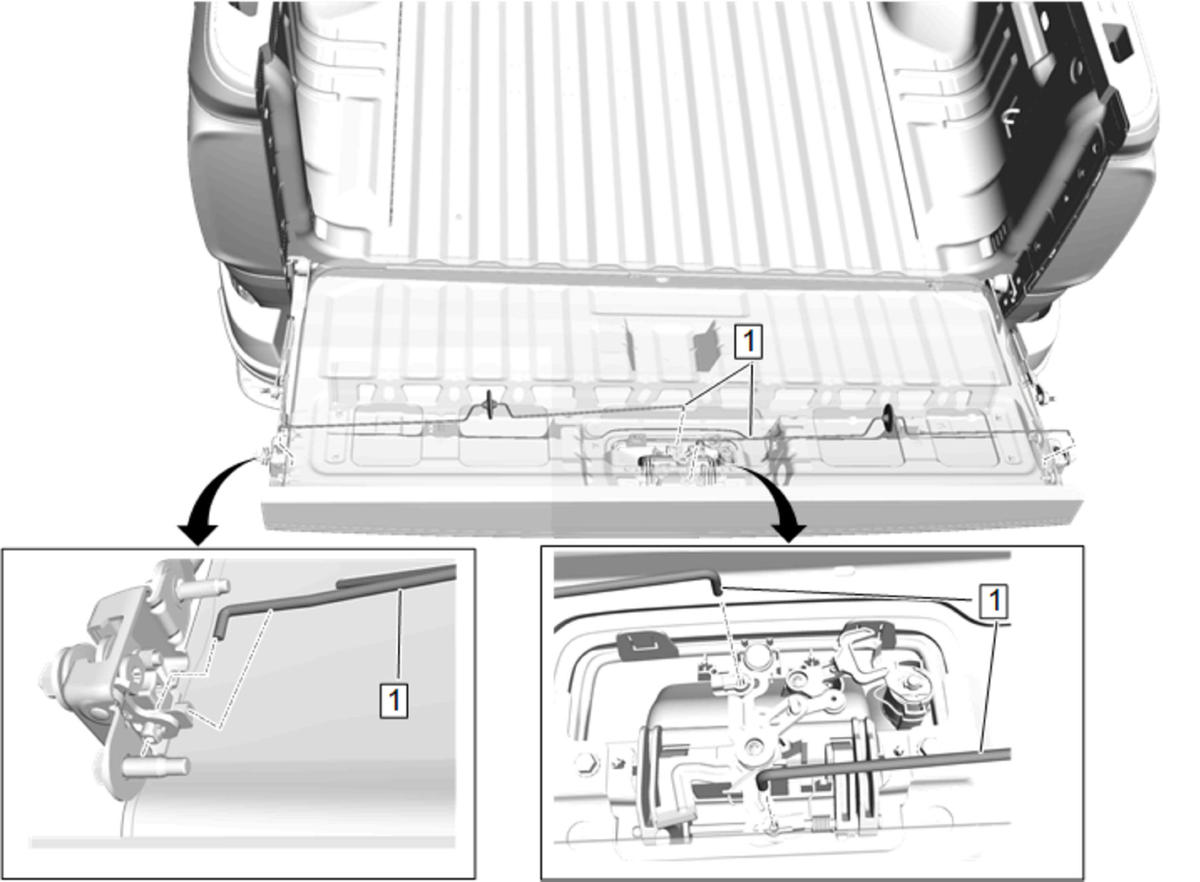

Callout	Component Name
Preliminary Procedure Pickup Box Endgate Access Hole Cover Panel Replacement
1	Pickup Box Endgate Latch Rod Procedure Disconnect pickup box endgate latch rod from the endgate handle. Disconnect pickup box endgate latch rod from pickup box endgate latch.

Callout

Component Name

Preliminary Procedure
Pickup Box Endgate Access Hole Cover Panel Replacement

Pickup Box Endgate Latch Rod

Procedure

Disconnect pickup box endgate latch rod from the endgate handle.
Disconnect pickup box endgate latch rod from pickup box endgate latch.
