Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

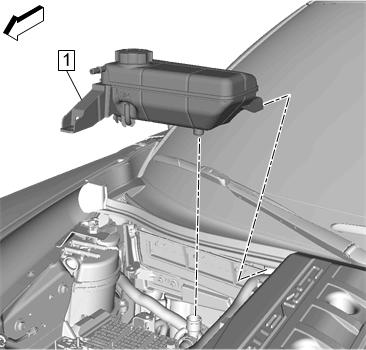

  2. GM4899019Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (1) - Remove - Radiator Surge Tank Replacement (LT1, LT4)Radiator Surge Tank Replacement (LT5)

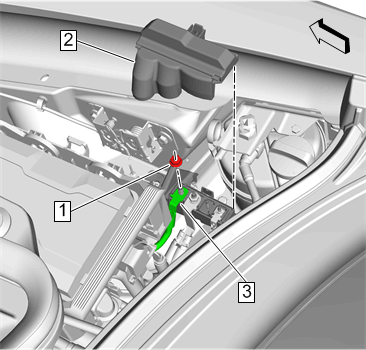

  3. GM4862114Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Fuse Block Cover (2) - Remove

  4. Battery Positive Cable Junction Block Nut (1) - Remove
  5. Generator Cable (3) - Remove

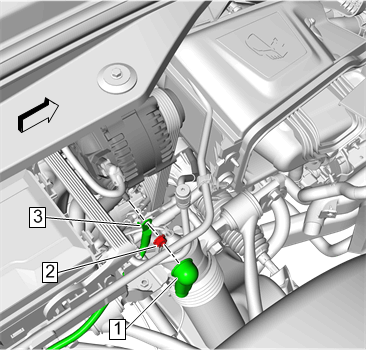

  6. GM4862116Courtesy of GENERAL MOTORS COMPANY

    Generator Terminal Protective Boot (1) - Reposition away

  7. Battery Positive Cable Nut (2) - Remove
  8. Generator Cable (3) - Remove
