Installation Procedure

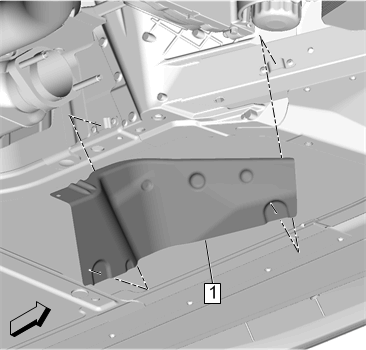

  1. GM4883637Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Heat Shield (1) - Install

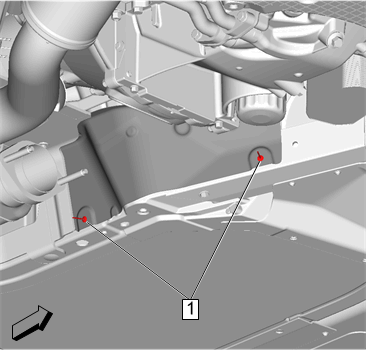

  2. GM4885699Courtesy of GENERAL MOTORS COMPANY

    Exhaust Tail Pipe Heat Shield Rivet (1) - Install NEW rivets. [2x]

  3. Three-Way Catalytic Converter - Install - Catalytic Converter Replacement - Left Side , and Catalytic Converter Replacement - Right Side .
