Front of the Vehicle Components

GM5048861Courtesy of GENERAL MOTORS COMPANY

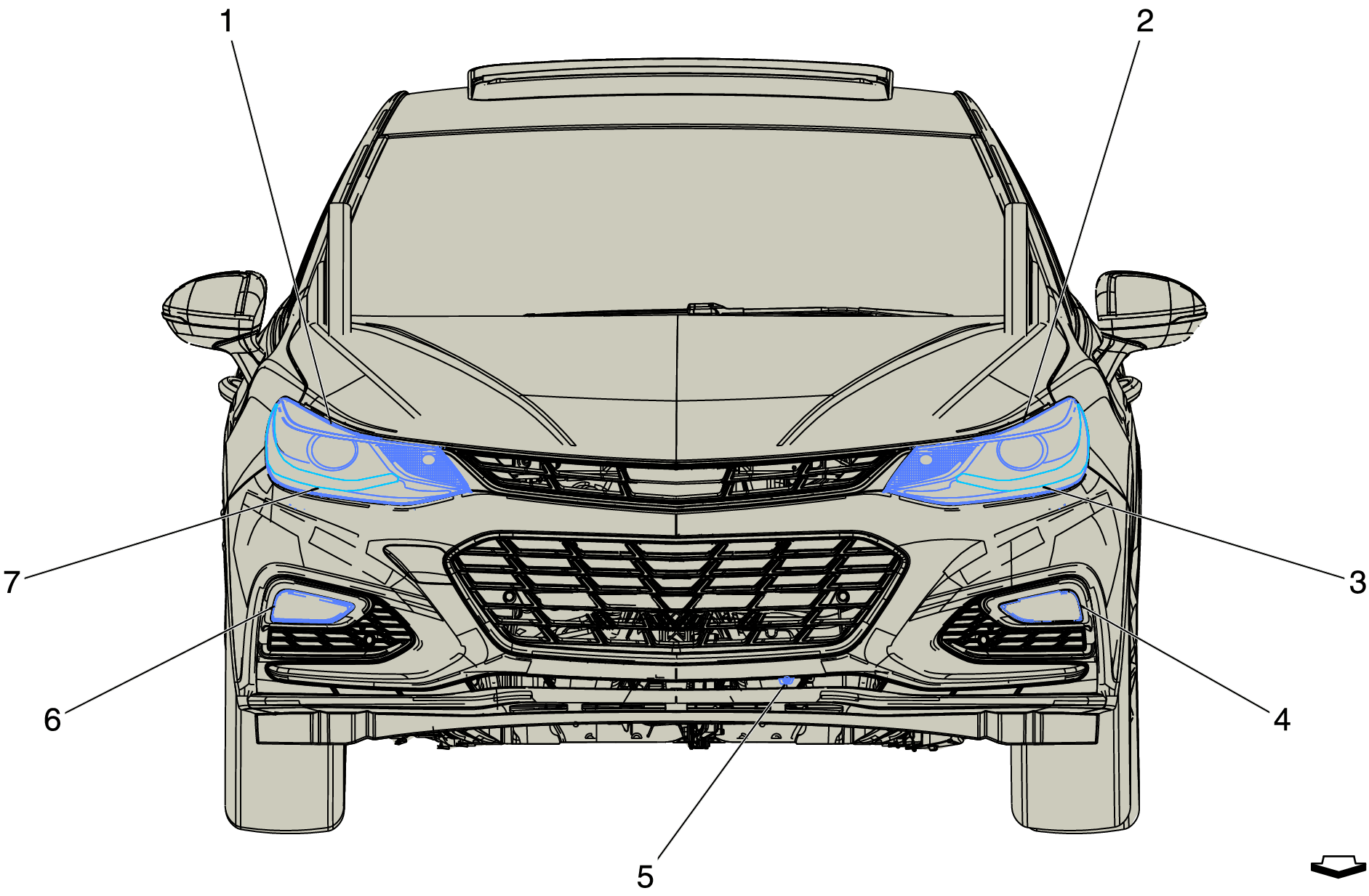

Front of the Vehicle Components

Items
1. E13RA Headlamp Assembly - Right
2. E13LA Headlamp Assembly - Left
3. E4C Daytime Running Lamp - Left (T3S)
4. E29LF Fog Lamp - Left Front E29LF Fog Lamp - Left Front
5. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
6. E29RF Fog Lamp - Right Front E29RF Fog Lamp - Right Front
7. E4D Daytime Running Lamp - Right (T3S)
