Installation Procedure

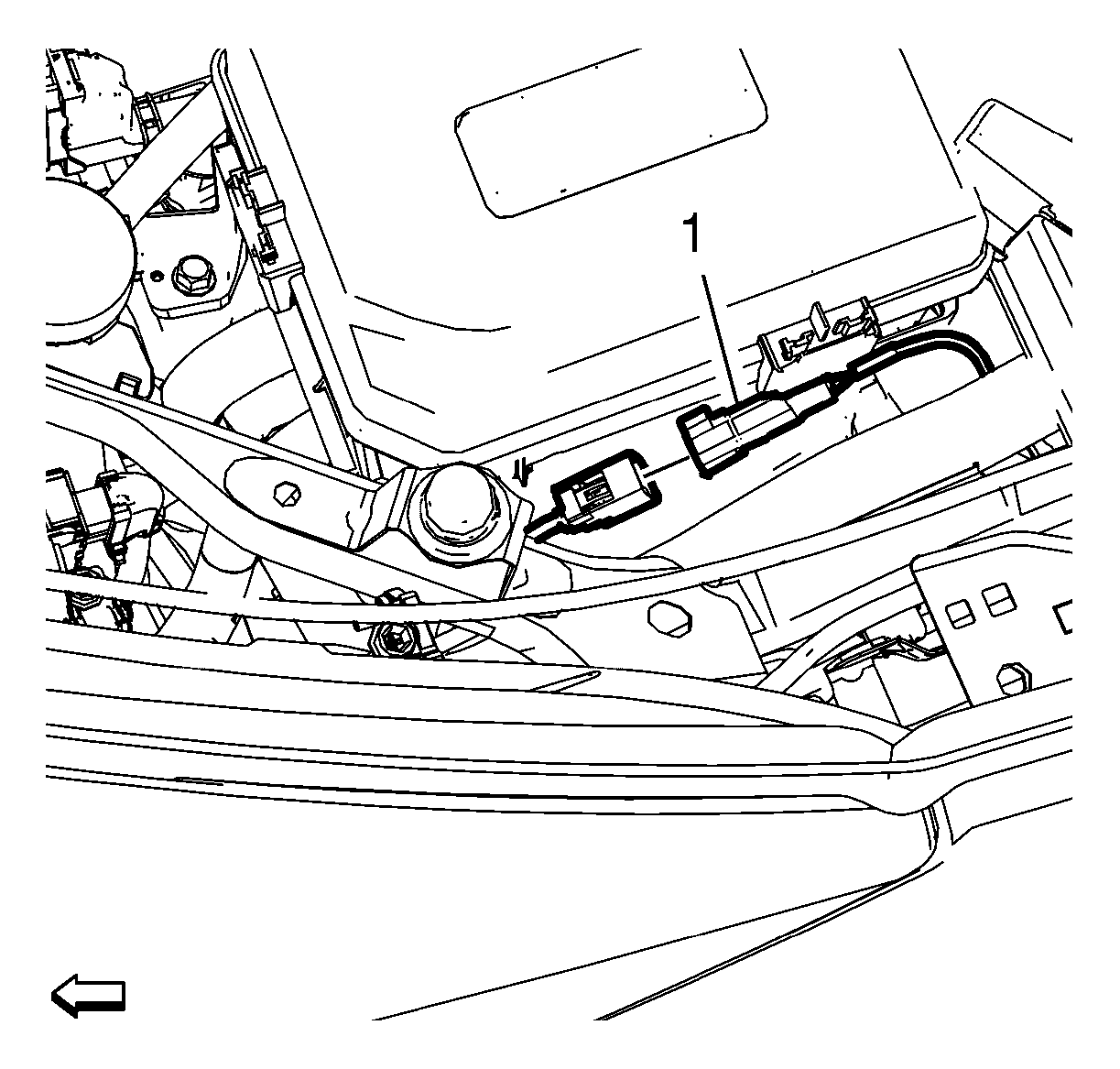

  1. GM3655423Courtesy of GENERAL MOTORS COMPANY

    Wheel Speed Sensor Connector (1) - Connect

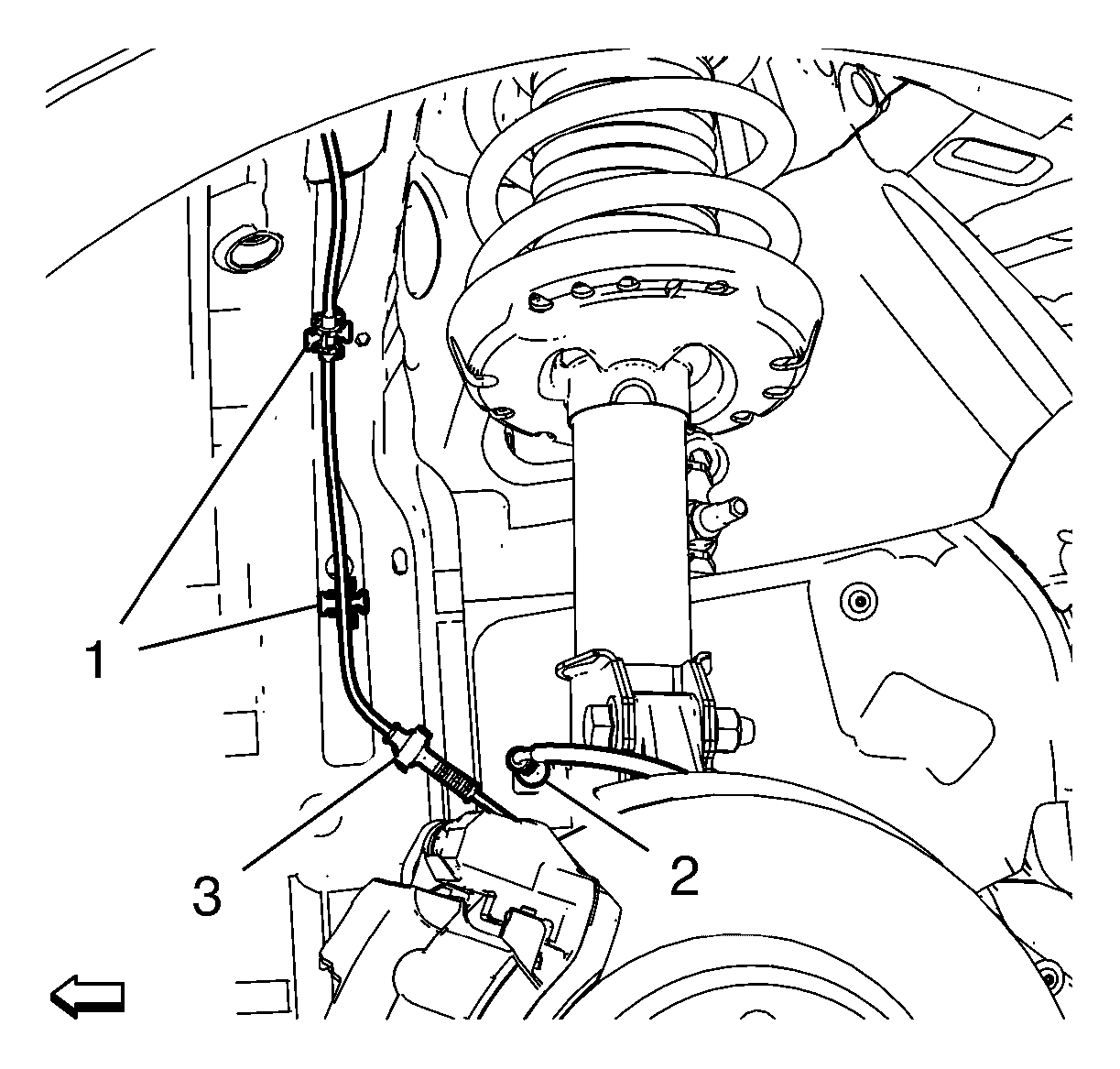

  2. GM3655422Courtesy of GENERAL MOTORS COMPANY

    Install the wiring harness. (1-3)

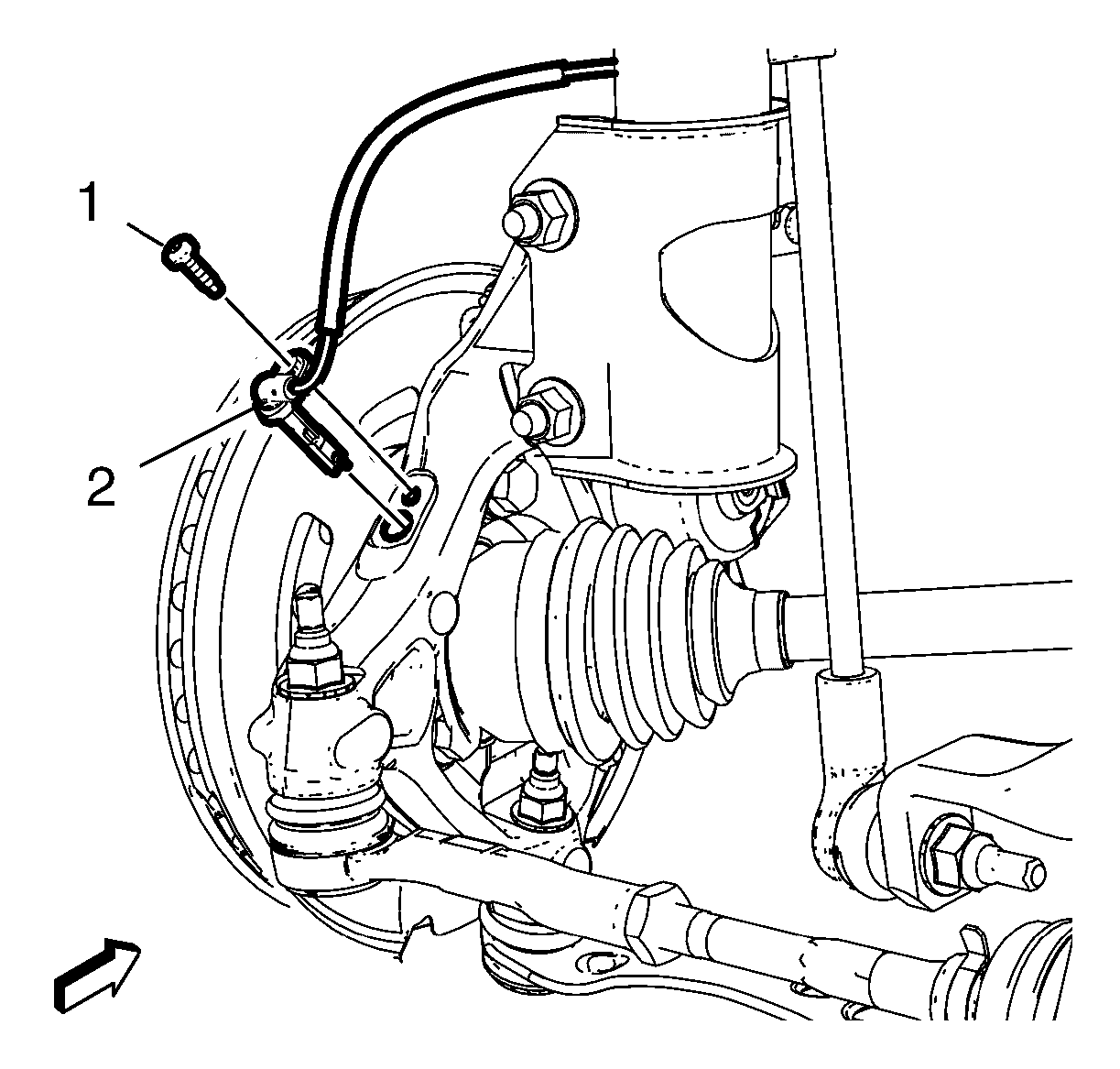

  3. GM3655421Courtesy of GENERAL MOTORS COMPANY

    Install the wheel speed sensor. (2)

    4. CAUTION:

    Refer to Fastener Caution .

  4. Front Wheel Speed Sensor Fastener (1) - Install and tighten 6 N.m (53 lb in)
  5. Front Wheelhouse Liner Replacement - Install
  6. Tire and Wheel Removal and Installation - Install
