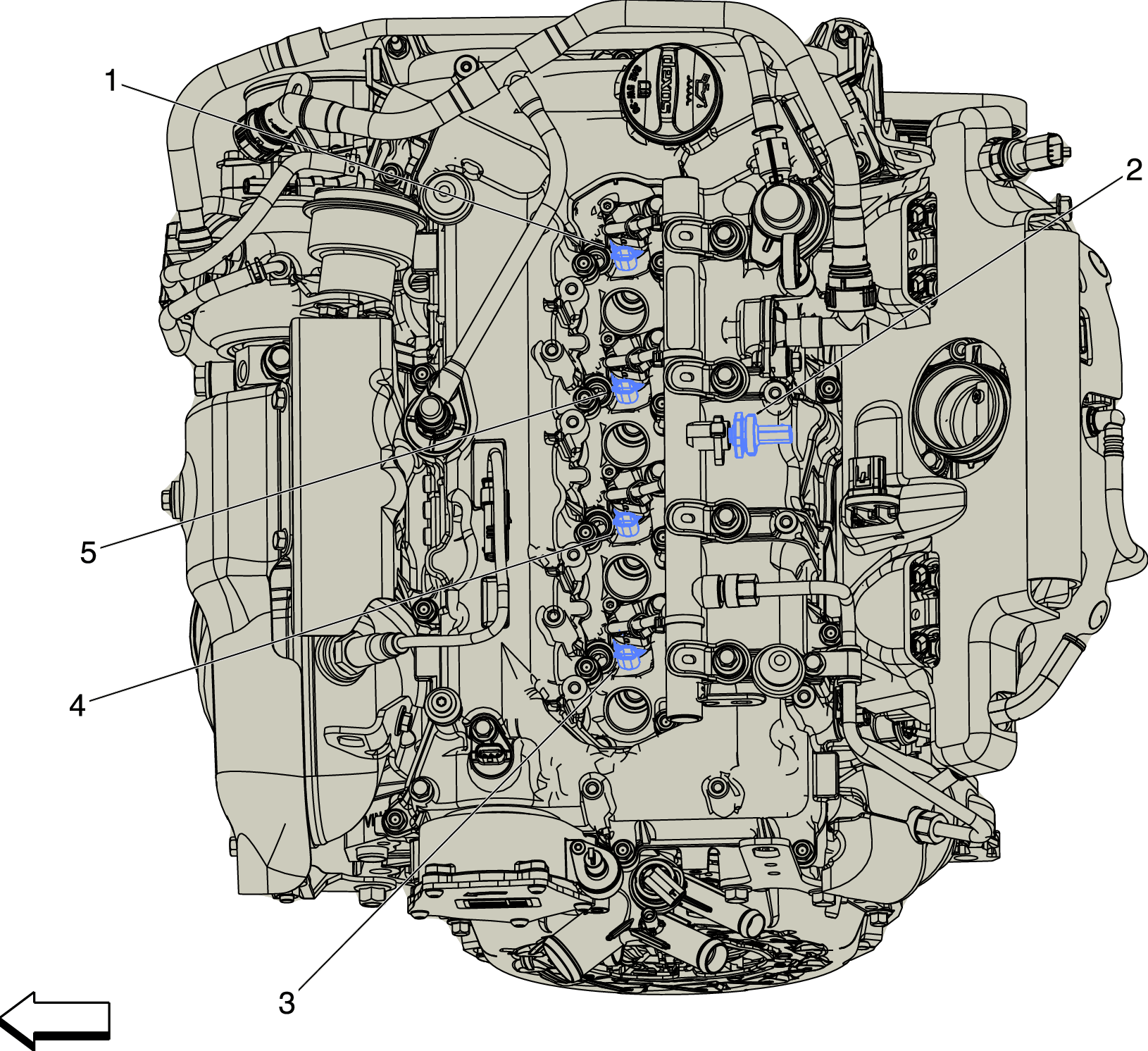

Fuel Rail Components (LE2/LEX)

GM4598816Courtesy of GENERAL MOTORS COMPANY
Fuel Rail Components (LE2/LEX)

Items
1. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LE2)
2. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor
3. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LE2)
4. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LE2)
5. Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LE2)
