Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

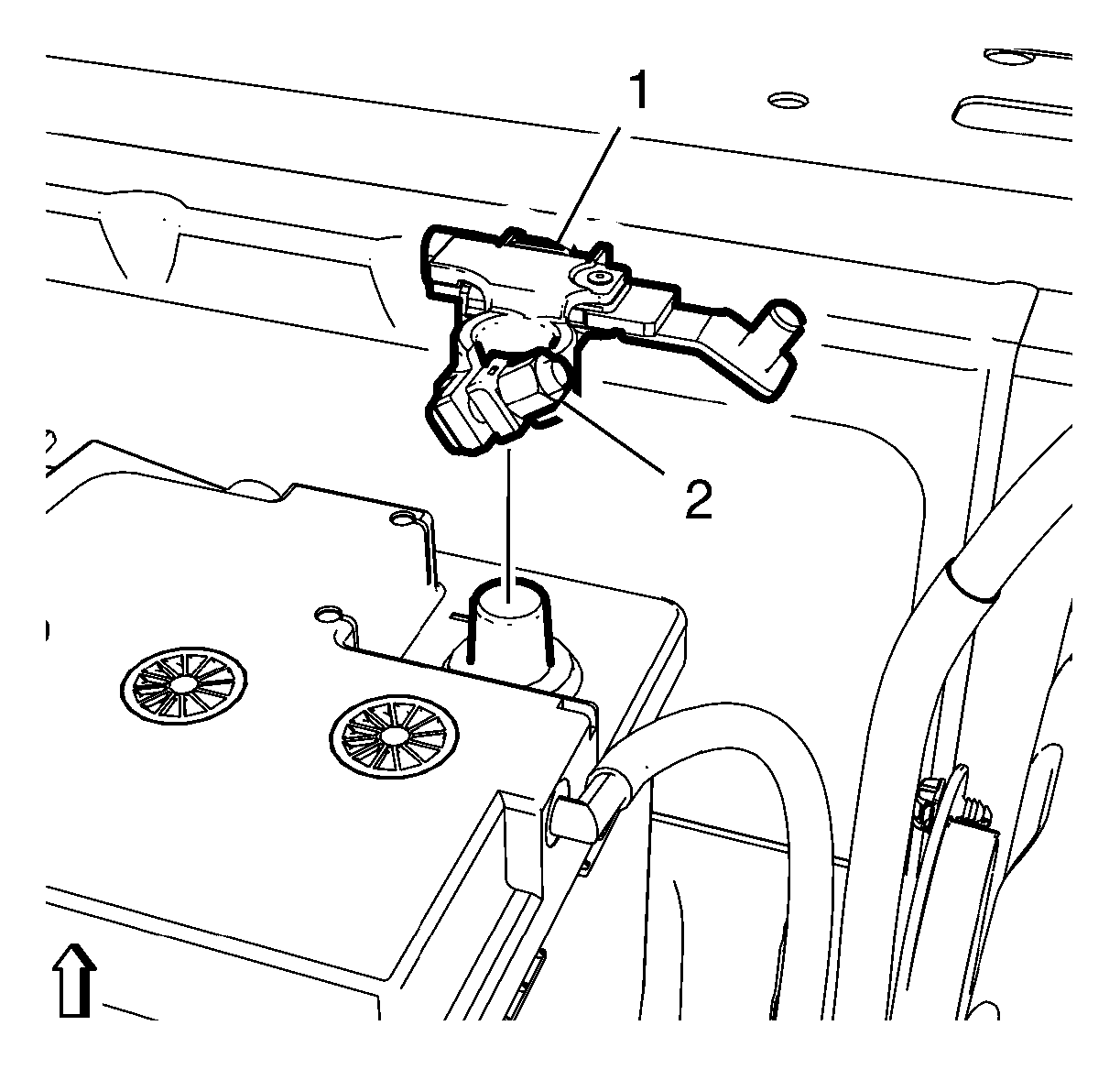

NOTE:
Do not tighten the battery sensor pole nut (2).

Loosely install the battery sensor (1) carefully.
Courtesy of GENERAL MOTORS COMPANY

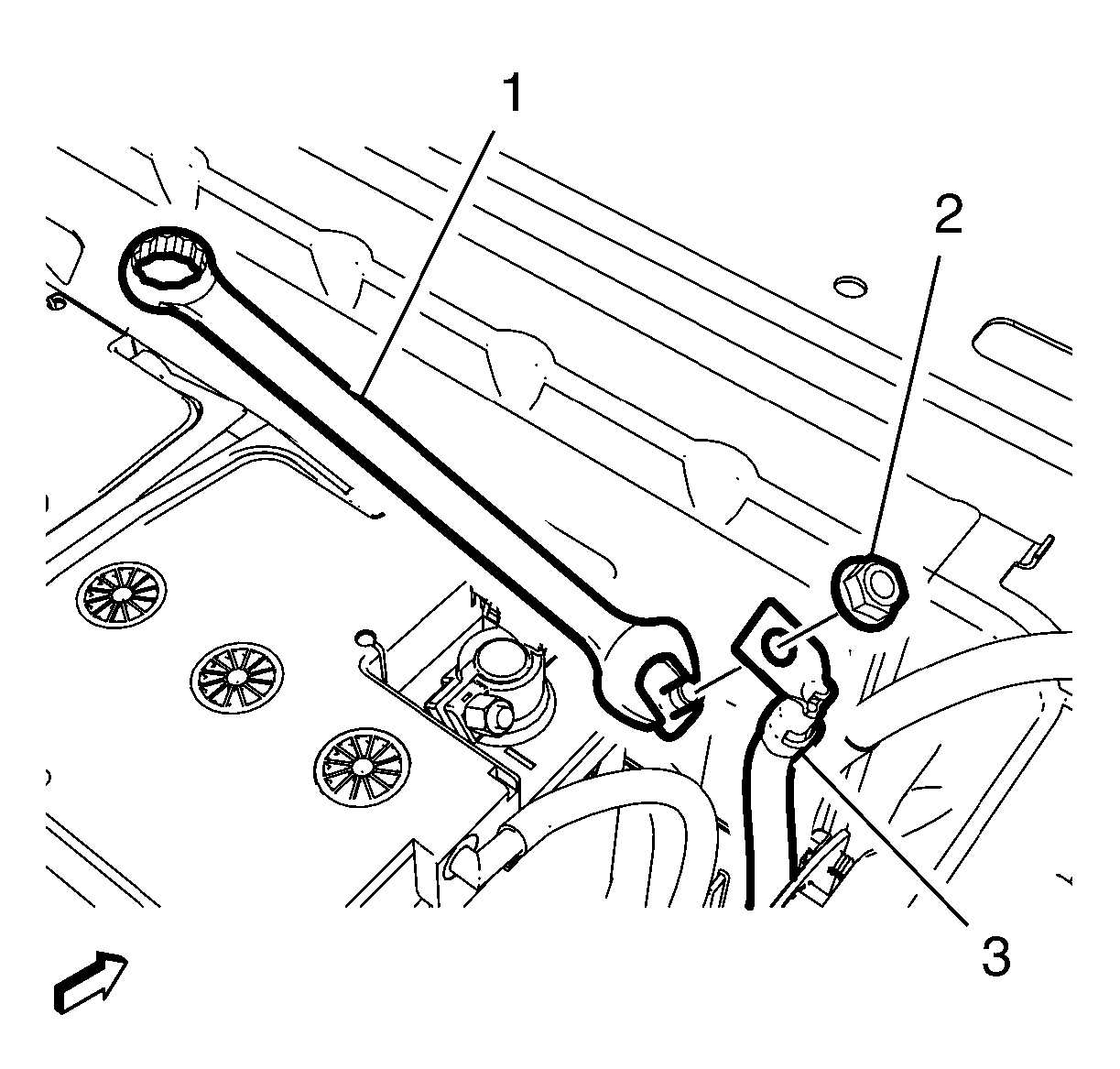

NOTE:
Use a counterholder to prevent damage at the battery sensor.

Battery Negative Cable (3) - Install
Install a open-end spanner (1) counterhold up the battery sensor as shown in the graphic.

CAUTION:

Install and tighten the battery negative cable nut (2) to 11N.m (97 lb in).
Courtesy of GENERAL MOTORS COMPANY

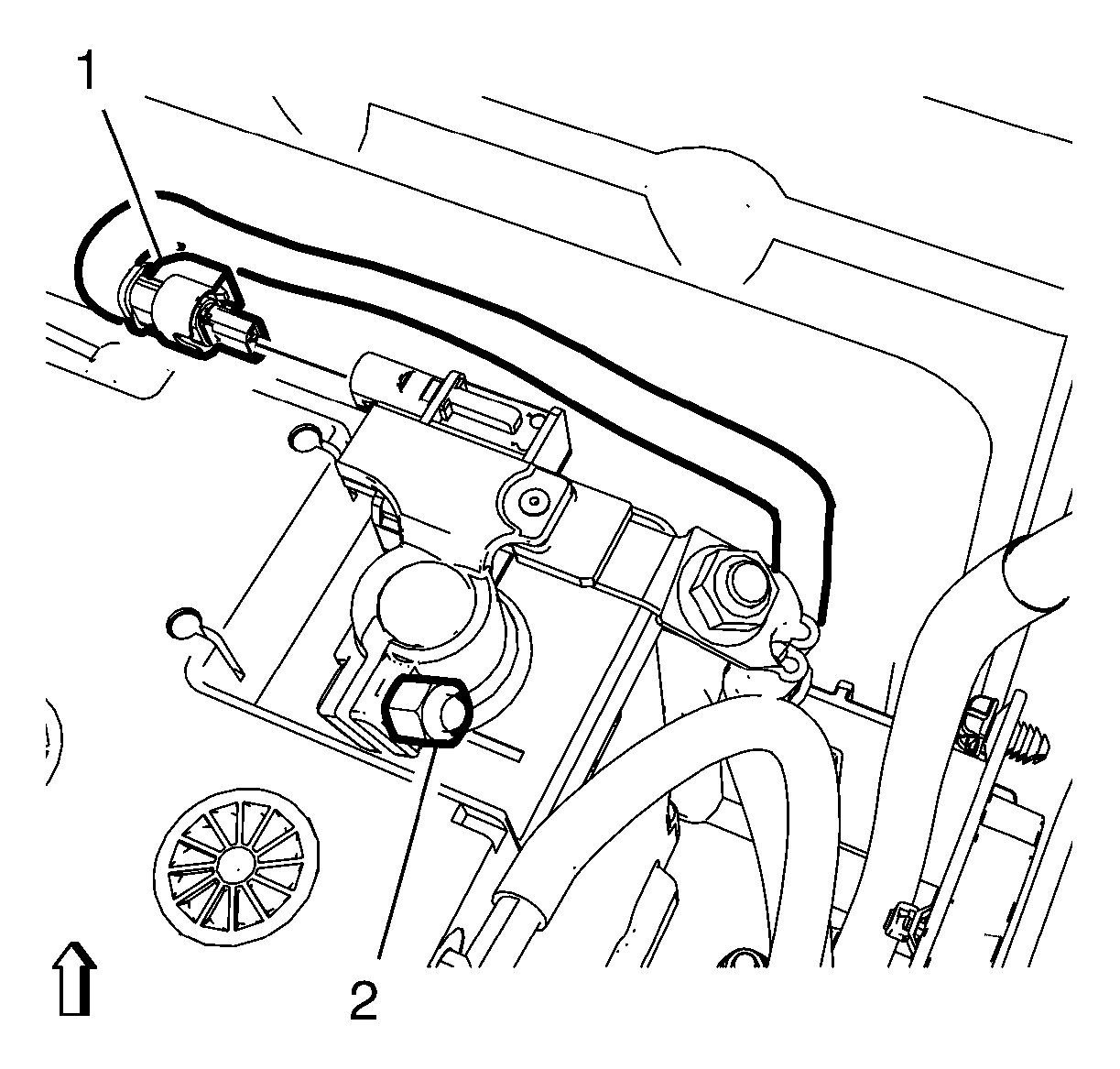

Connect the wiring harness plug (1) to the battery sensor.
Tighten the battery negative pole nut (2) to 4.5N.m (40 lb in).
Fold the rear seat back cushion in original position.
Close the right rear door.
Rear Compartment Floor Panel Trim Support - Install
Rear Compartment Floor Panel Trim - Install
Close the rear compartment lid.
Ignition - On / Vehicle - In Service Mode & Engine - Off
Program the volatile memory. Volatile Memory Programming .
Program all of the customer's radio station presets and set the radio clock to the current time.
