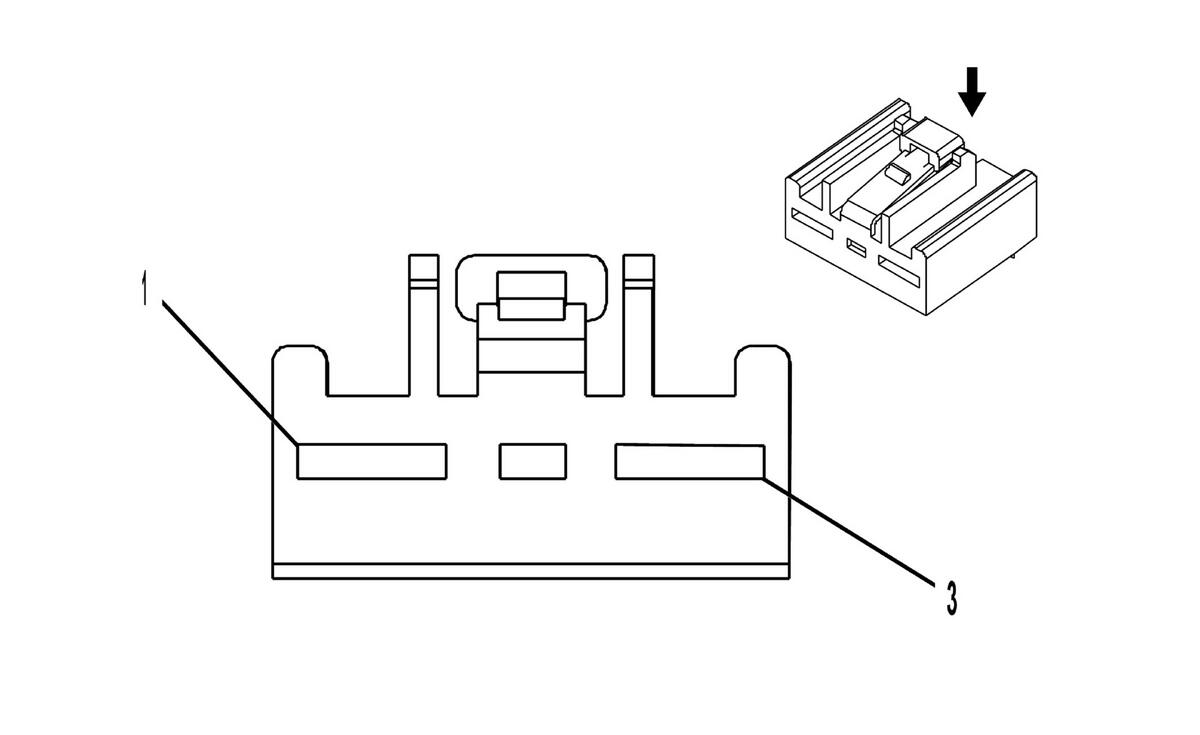

K8 Blower Motor Control Module X1
WARNING: This page is about a different car, the 2018 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: HVAC
- OEM Connector: 7283-3032
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 187, 312 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
VT |
65 |
Blower Motor Control |
I |
- |
| 2 |
4 |
VT/BK |
5987 |
Front Blower Motor Low Reference |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
