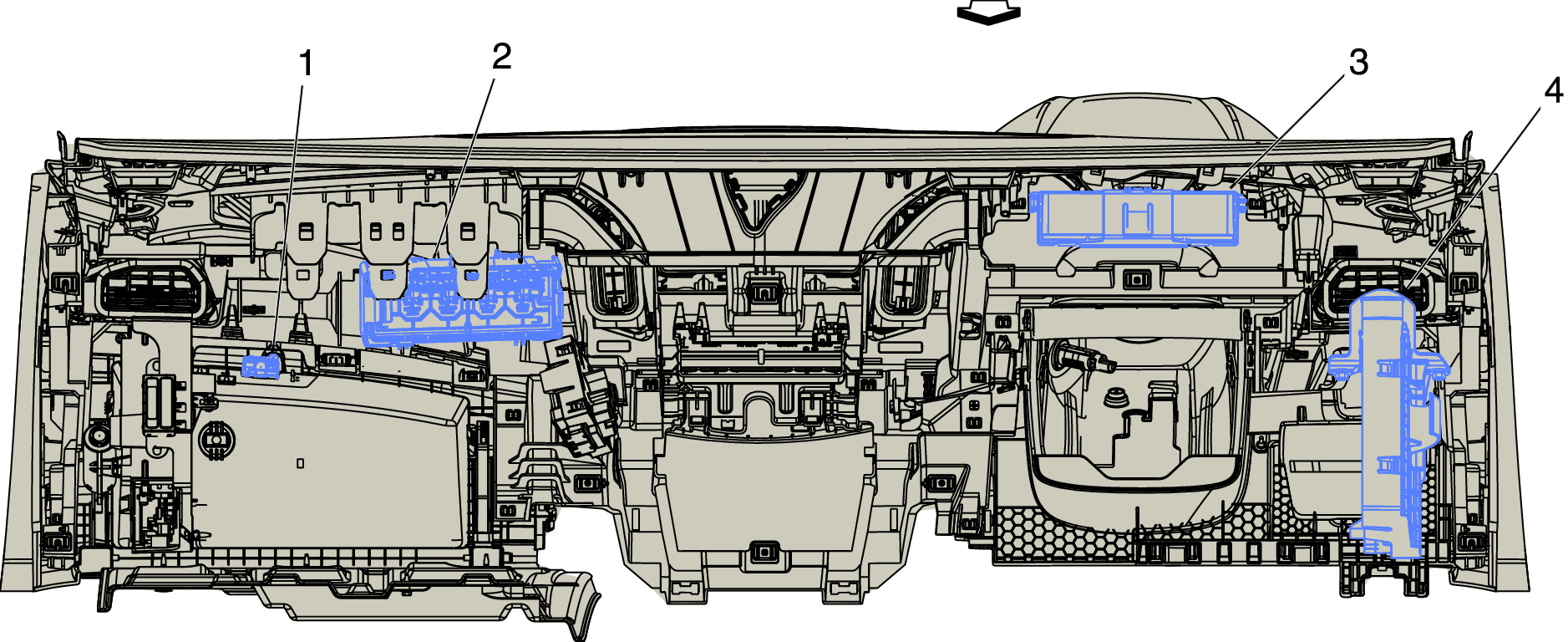

Instrument Panel Components Backside

GM4997559Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Components Backside

Items
1. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
2. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3
3. K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1K73 Telematics Communication Interface Control Module X5 (VV4)K73 Telematics Communication Interface Control Module X7 (UE1)
4. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
