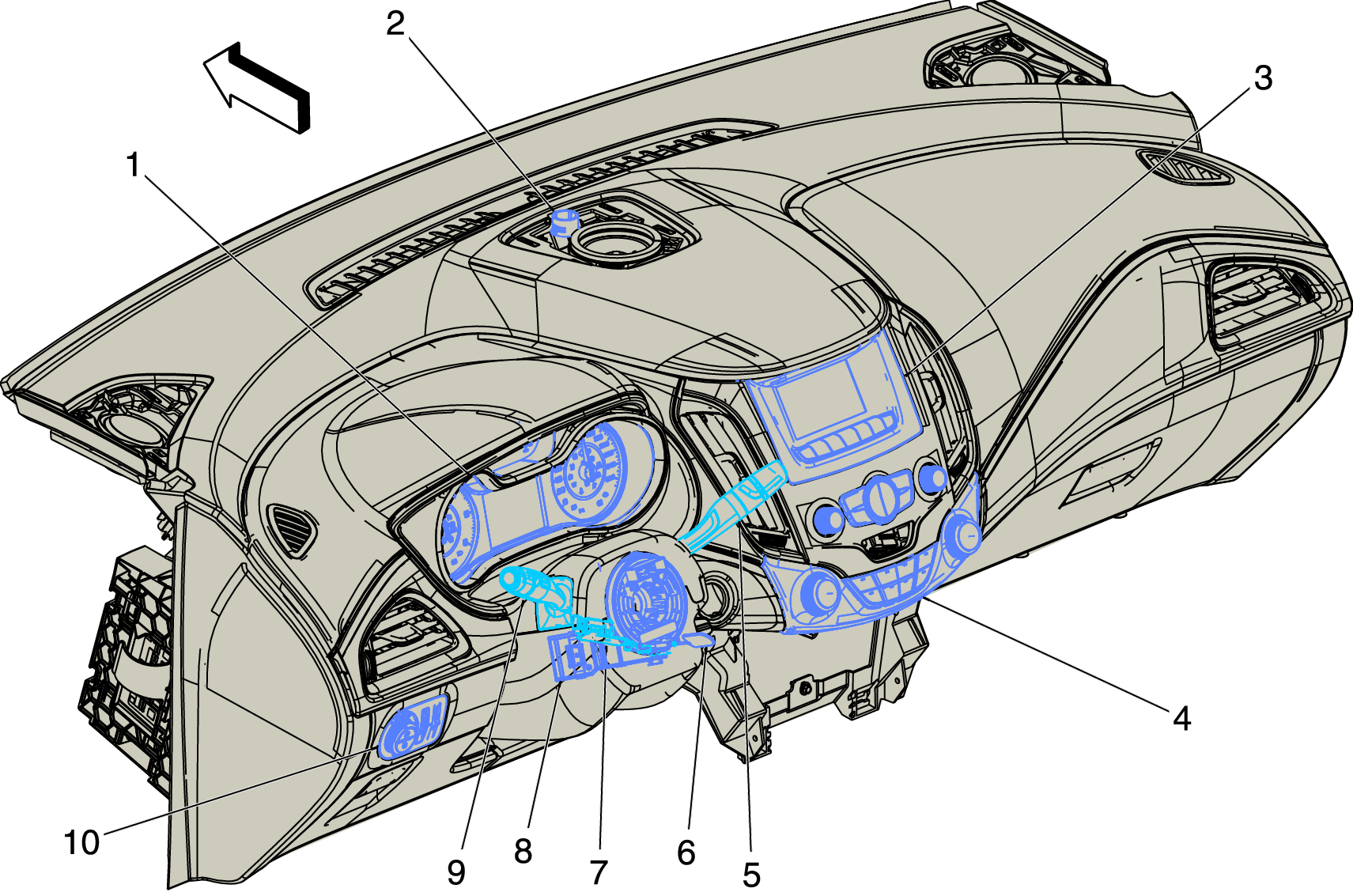

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1. P16 Instrument Cluster P16 Instrument Cluster |
| 2. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 3. A11 Radio (IOR) A11 Radio X1 (IOR)A11 Radio X2 (IOR)A11 Radio X3 (IOR)A11 Radio X4 (IOR)A11 Radio X6 (IOR)A11 Radio X7 (IOR) |
| 4. A26 HVAC Controls A26 HVAC Controls |
| 5. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 6. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2 |
| 7. K89 Immobilizer Control Module K89 Immobilizer Control Module (-AVJ-BTM)K89 Immobilizer Control Module (AVJ/BTM) |
| 8. S39 Ignition Switch S39 Ignition Switch |
| 9. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 10. S30 Headlamp Switch S30 Headlamp Switch |
