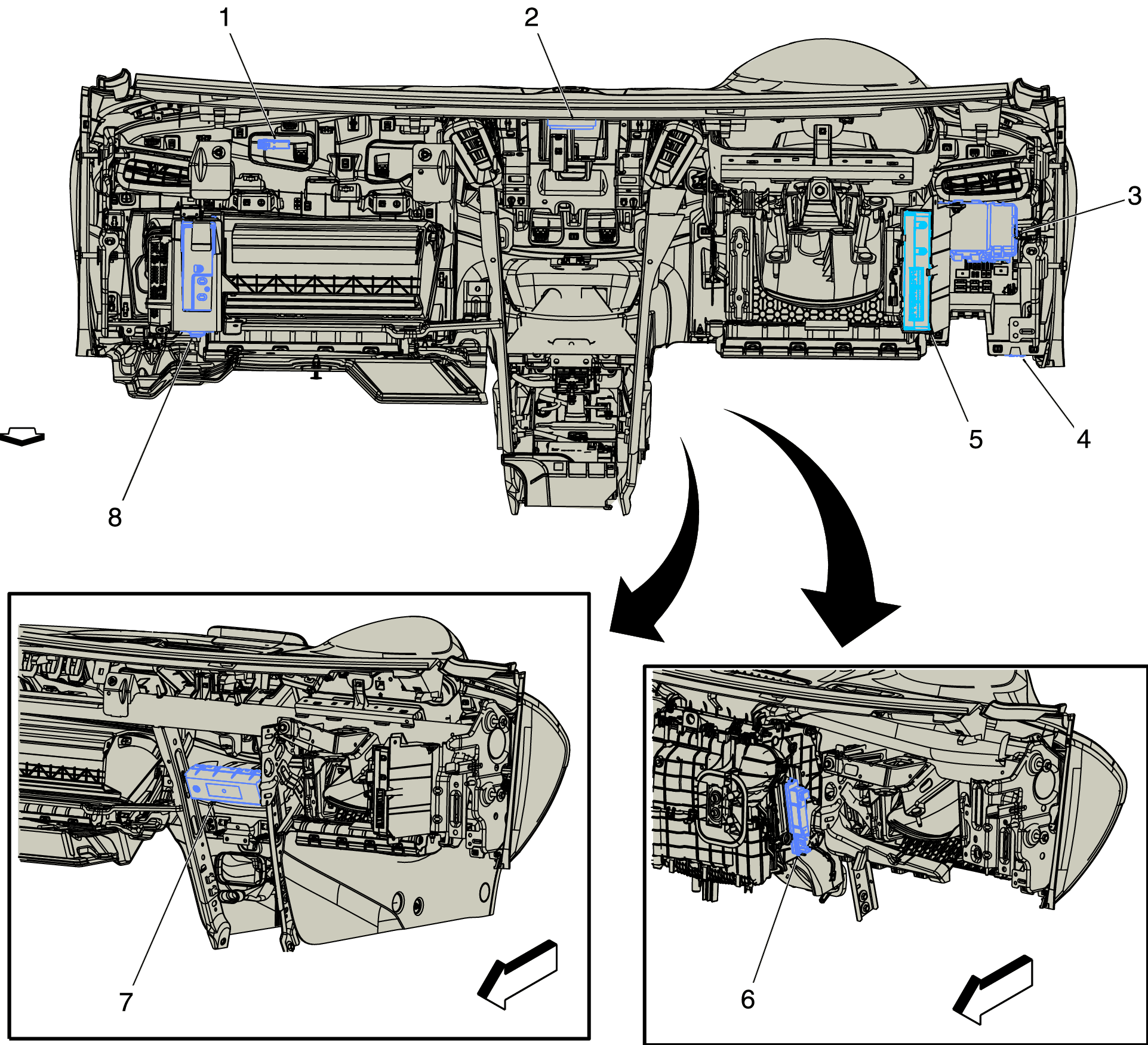

Instrument Panel Components - Rear side

Courtesy of GENERAL MOTORS COMPANY

Items
1 E1W Accent Lamp - Instrument Panel E1W Accent Lamp - Instrument Panel
2 P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA)
3 X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel , or X51A Fuse Block - Instrument Panel, Wire Entry
4 X84 Data Link Connector X84 Data Link Connector
5 K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1) , or K73 Telematics Communication Interface Control Module X5 (UE1) , or K73 Telematics Communication Interface Control Module X7
6 E40 Electrical Auxiliary Heater (C32) E40 Electrical Auxiliary Heater X1 (C32) , or E40 Electrical Auxiliary Heater X2
7 K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 (C32) , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4
8 A11 Radio A11 Radio X1 (IOR) , or A11 Radio X1 (IOS/IOU) , or A11 Radio X2 (IOR) , or A11 Radio X2 (IOS/IOU) , or A11 Radio X3 (IOR) , or A11 Radio X4 (IOS/IOU) , or A11 Radio X5 (IOR) , or A11 Radio X6 (IOR) , or A11 Radio X6 (IOS/IOU) , or A11 Radio X7 , or A11 Radio X8 , or A11 Radio X9
