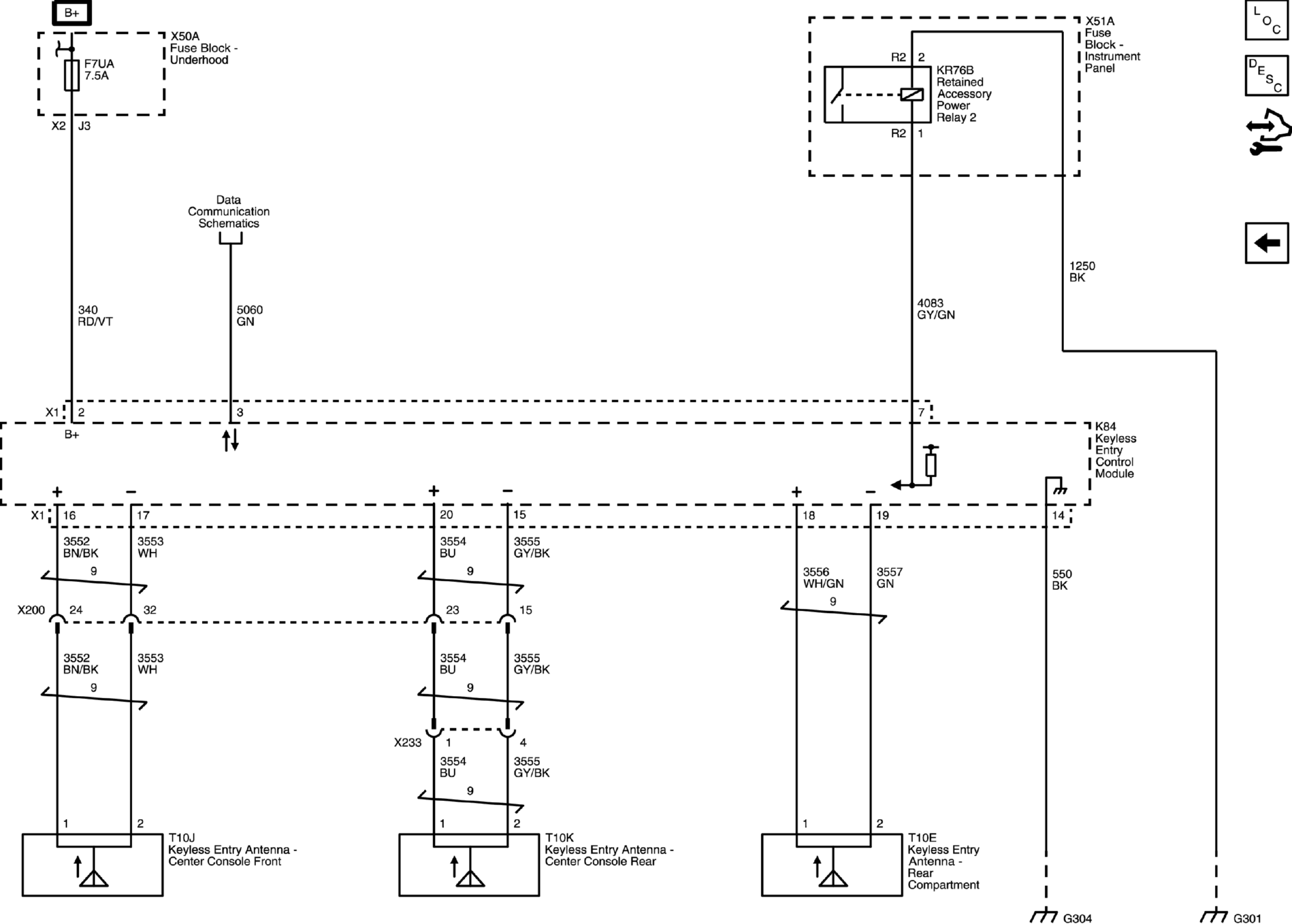

Keyless Entry ? Passive Start (ATH/AVJ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
