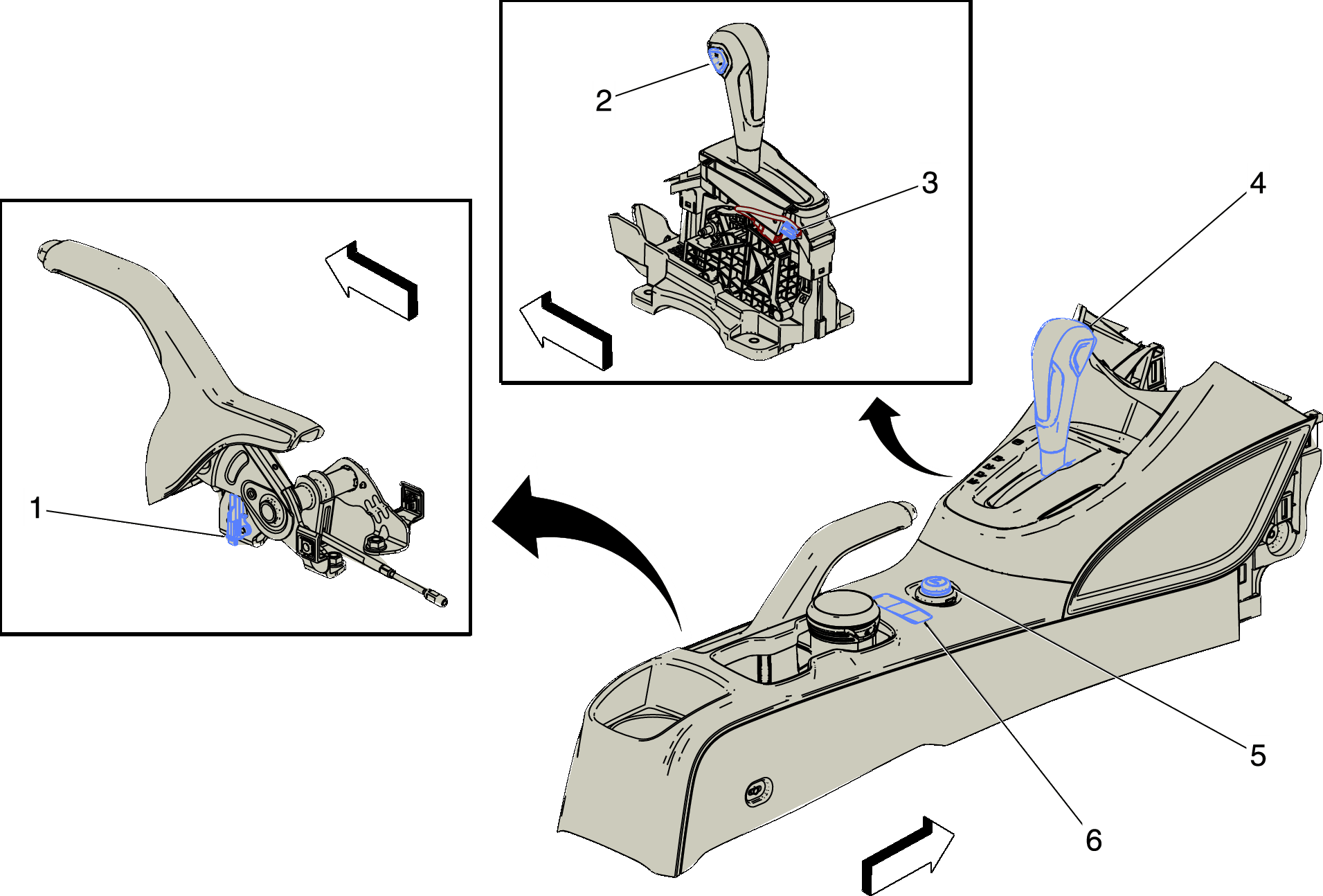

Center Console Components

GM2554607Courtesy of GENERAL MOTORS COMPANY
Center Console Components

Items
1. B80 Park Brake Switch B80 Park Brake Switch
2. S2 Transmission Manual Shift Switch (MH8)
3. P2 Transmission Shift Lever Position Indicator (MH8) P2 Transmission Shift Lever Position Indicator
4. S3 Transmission Shift Lever (MH8) S3 Transmission Shift Lever
5. E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle
6. S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console
