Steering Column Components

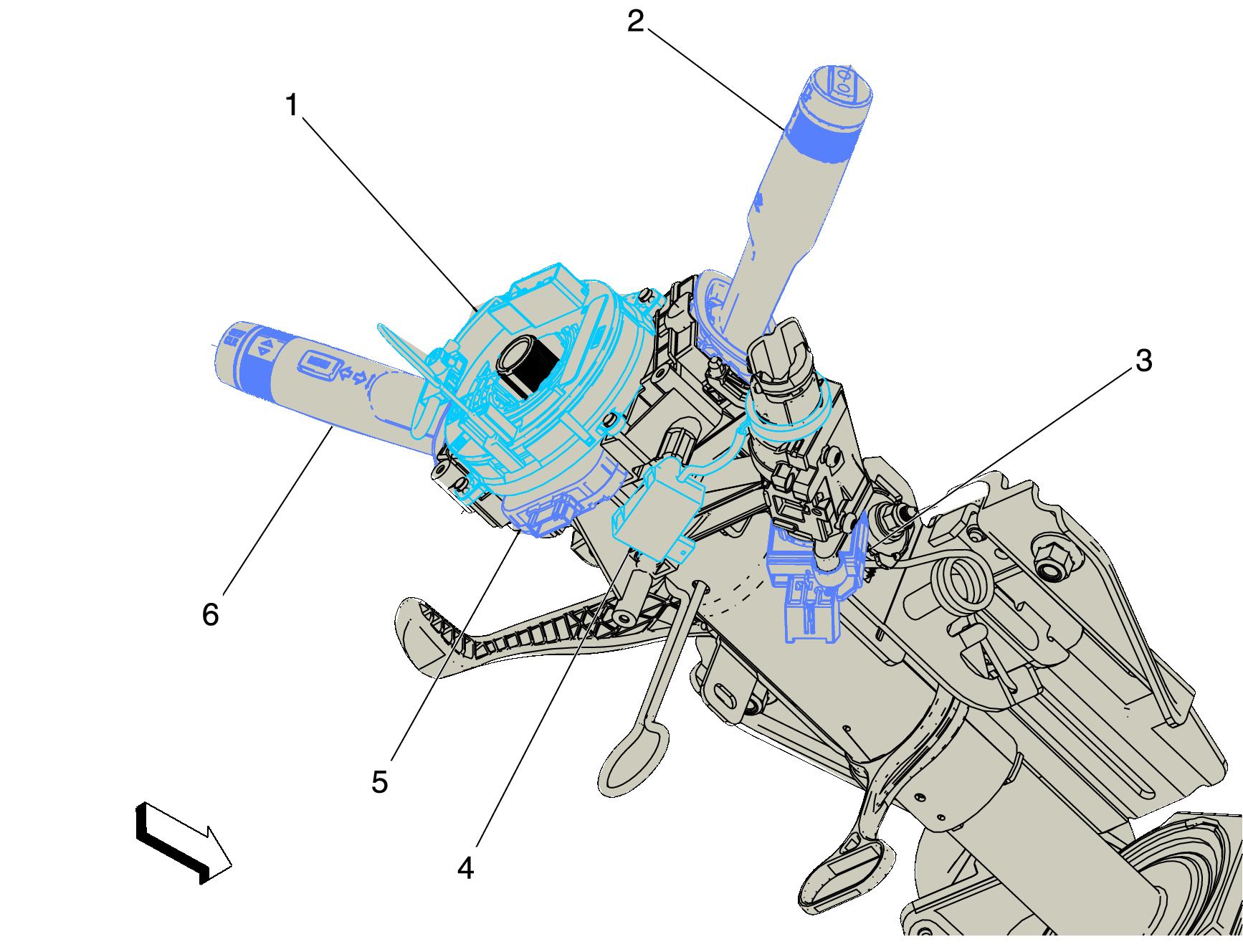

GM2554610Courtesy of GENERAL MOTORS COMPANY
Steering Column Components

Items
1. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 ()X85 Steering Wheel Air Bag Coil X2 (AYF)X85 Steering Wheel Air Bag Coil X2 (I19)X85 Steering Wheel Air Bag Coil X3
2. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch
3. S39 Ignition Switch S39 Ignition Switch
4. K89 Immobilizer Control Module K89 Immobilizer Control Module (-ATH)K89 Immobilizer Control Module (ATH)
5. B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
6. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch (-C80)
