K22 Cooling Fan Control Module
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

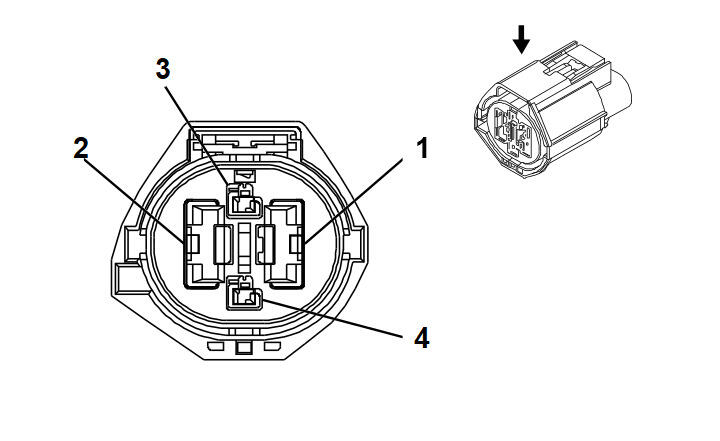

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Not Required | J-35616-22 (RD) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| II | Not Required | J-35616-2A (GY) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| III | Not Required | J-35616-42 (RD) | No Tool Required | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 6 10 |
BK BK |
1350 1350 |
Ground Ground |
I III |
LCV LGZ |
| 2 | 6 10 |
RD/GY RD/GY |
4840 4840 |
Battery Positive Voltage Battery Positive Voltage |
I III |
LCV LGZ |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.5 | WH/BK | 2366 | Cooling Fan Control Relay Speed Signal | II | - |
