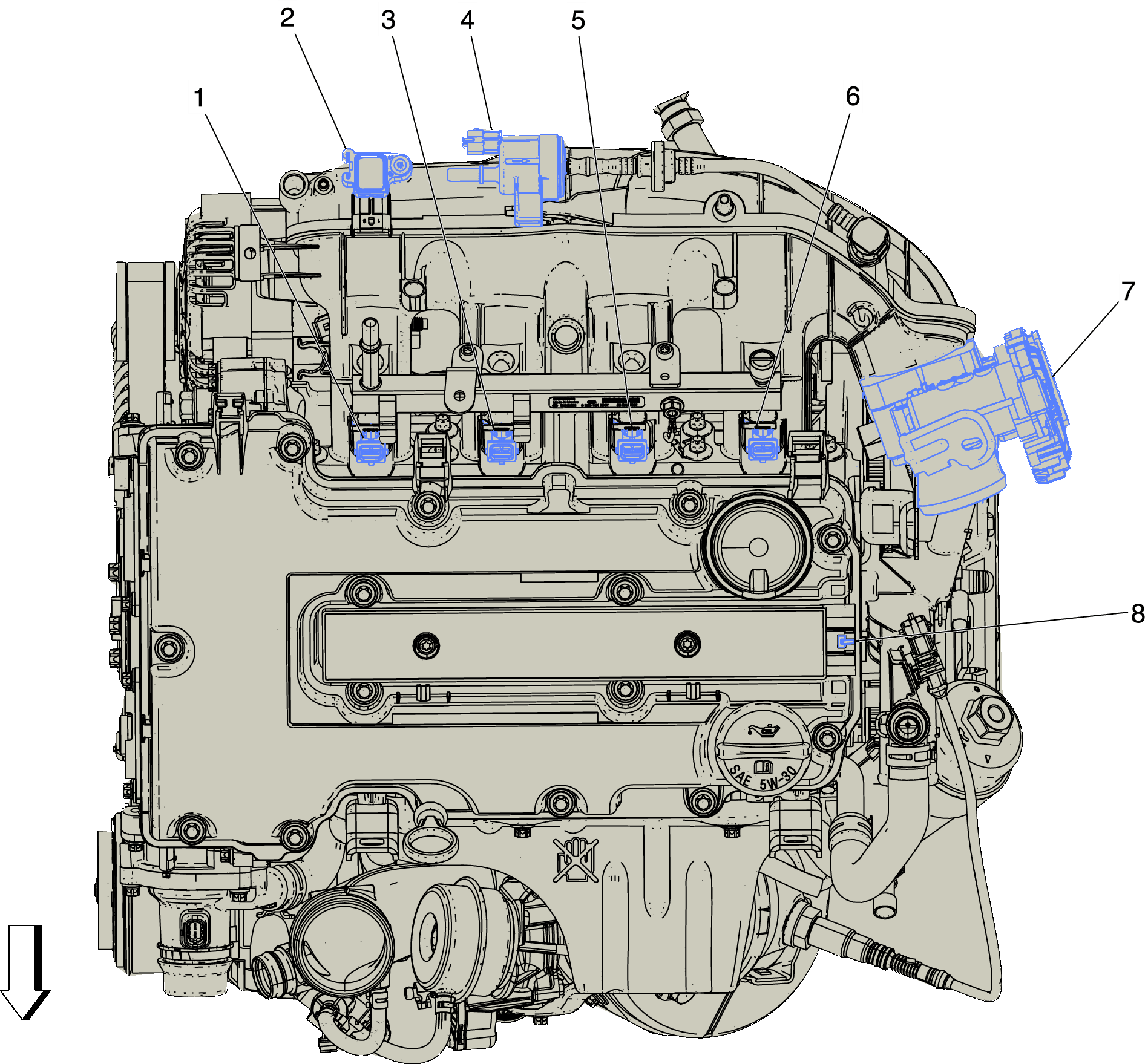

Top of Engine Components - 1.4L (LUV)
Top of Engine Components - 1.4L (LUV)
| Items |
|---|
| 1. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
| 2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 3. Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 5. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 6. Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 7. Q38 Throttle Body Q38 Throttle Body |
| 8. K35 Ignition Coil Module K35 Ignition Coil Module |
