Driver Seat Components

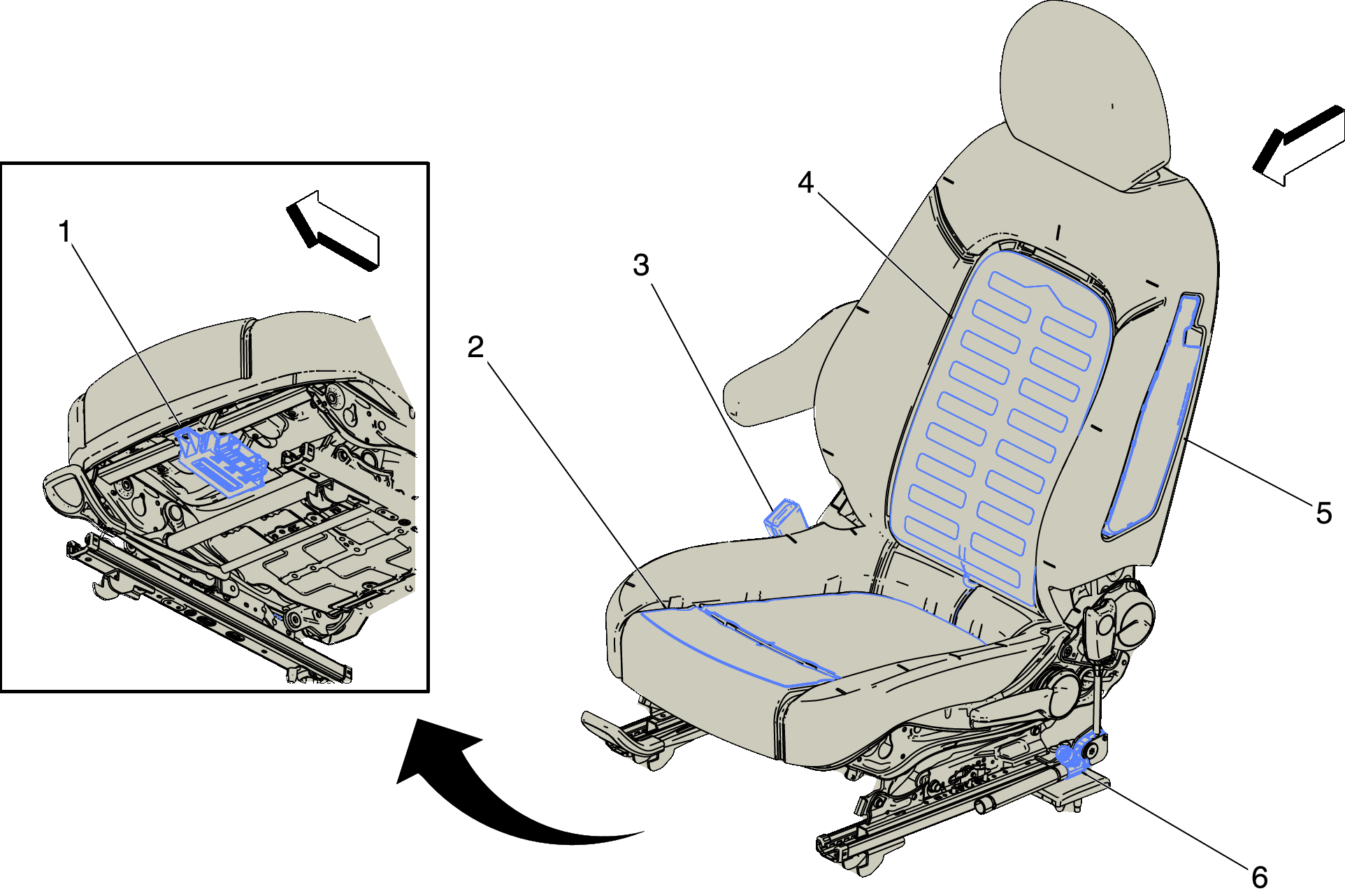

GM4787868Courtesy of GENERAL MOTORS COMPANY
Driver Seat Components

Items
1. K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1K29 Seat Heating Control Module X2 (ORN)K29 Seat Heating Control Module X2 (-ORN)K29 Seat Heating Control Module X3
2. E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion
3. B153D Seat Belt Buckle - Driver
4. E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back
5. F106LF Seat Side Air Bag - Left Front (AMM) F106LF Seat Side Air Bag - Left Front
6. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
