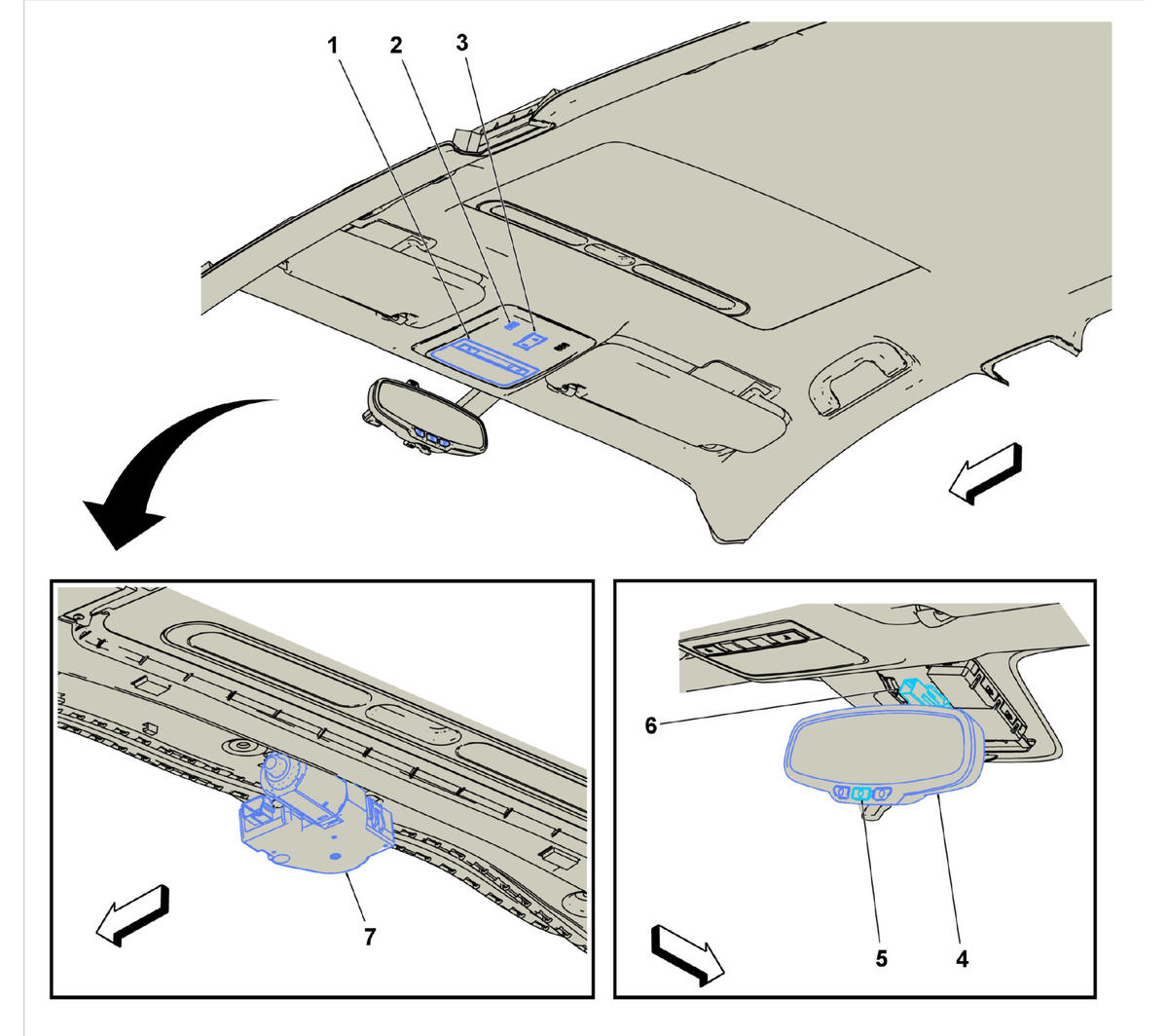

Headliner Components

GM5135538Courtesy of GENERAL MOTORS COMPANY
Headliner Components

Items
1. E37A Dome/Reading Lamps E37A Dome/Reading Lamps
2. B24 Mobile Telephone Microphone B24 Mobile Telephone Microphone
3. S72 Sunroof Switch (CF5) S72 Sunroof Switch
4. A10 Inside Rearview Mirror A10 Inside Rearview Mirror
5. S51 Telematics Button Assembly
6. B174W Frontview Camera - Windshield B174W Frontview Camera - Windshield
7. K61 Sunroof Control Module (CF5) K61 Sunroof Control Module
