K17 Electronic Brake Control Module

Courtesy of GENERAL MOTORS COMPANY

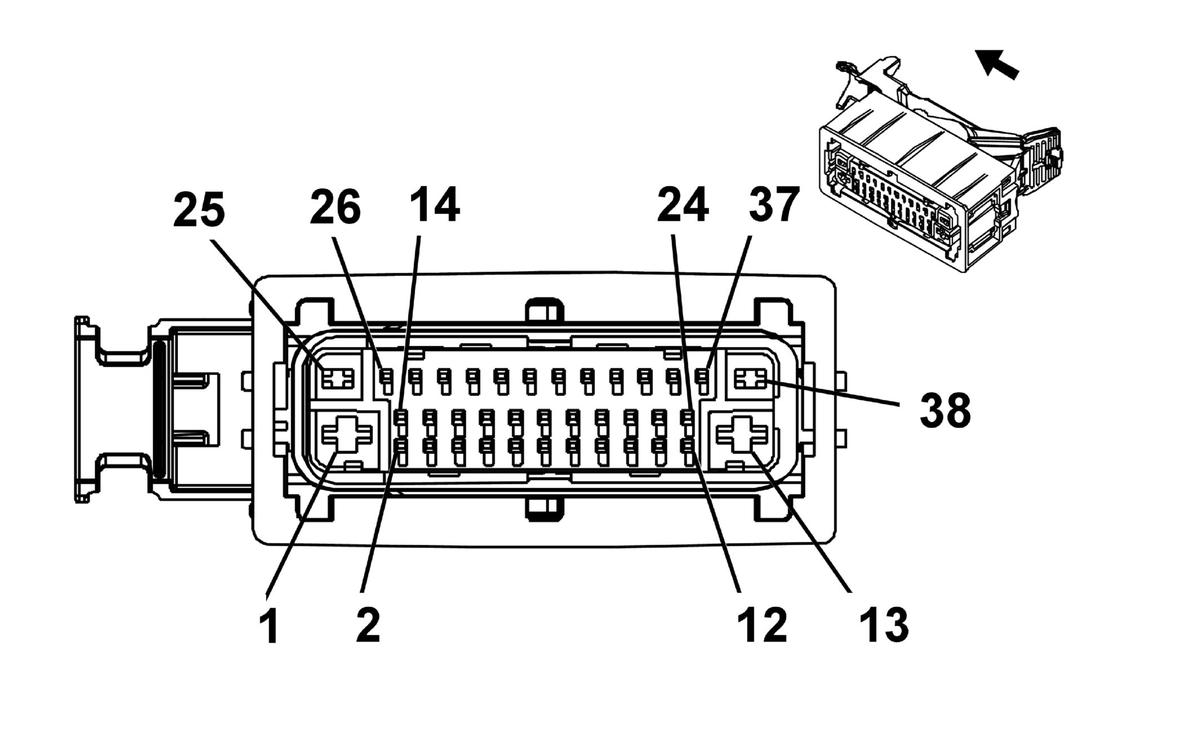

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13579759	J-35616-42 (RD)	J-38125-36	1241818-1	Delphi 4	B	G
II	13580821	J-35616-4A (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
III	19300631	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	4	RD/YE	240	Battery Positive Voltage	I	J93
2 - 3	-	-	-	Not Occupied	-	-
4	0.5	GN/BN	2087	Combined Vehicle Inertial Sensor Supply Voltage	III	-
5 - 11	-	-	-	Not Occupied	-	-
12	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	III	-
13	4	BK	1450	Ground	I	J93
14	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	III	J93
15 - 17	-	-	-	Not Occupied	-	-
18	0.5	GY/BN	7065	Wheel Speed Sensor Control Right Front	III	J93
19	0.5	GY/YE	7128	Wheel Speed Sensor Control Right Rear	III	J93
20	0.5	BU	884	Wheel Speed Sensor Signal Left Rear	III	-
21	0.5	GY	830	Wheel Speed Sensor Signal Left Front	III	J93
22	0.5	GN/GY	333	Brake Fluid Level Sensor Signal	III	-
23	-	-	-	Not Occupied	-	-
24	0.5	WH	6106	High Speed GMLAN Serial Data (-) 2	III	J93
25	2.5	RD/WH	140	Battery Positive Voltage	II	J93
26	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	III	-
27 - 28	-	-	-	Not Occupied	-	-
29	0.35 0.35	WH/BU WH/BU	5986 5986	Serial Data Communication Enable Serial Data Communication Enable	III III	J93+HATCHBACK J93+NOTCHBACK
30	-	-	-	Not Occupied	-	-
31	0.5	YE	872	Wheel Speed Sensor Signal Right Front	III	J93
32	0.5	VT	882	Wheel Speed Sensor Signal Right Rear	III	J93
33	0.5	GY/BK	7127	Wheel Speed Sensor Control Left Rear	III	J93
34	0.5	GY/WH	7064	Wheel Speed Sensor Control Left Front	III	J93
35 - 37	-	-	-	Not Occupied	-	-
38	2.5	BK	1450	Ground	II	J93
