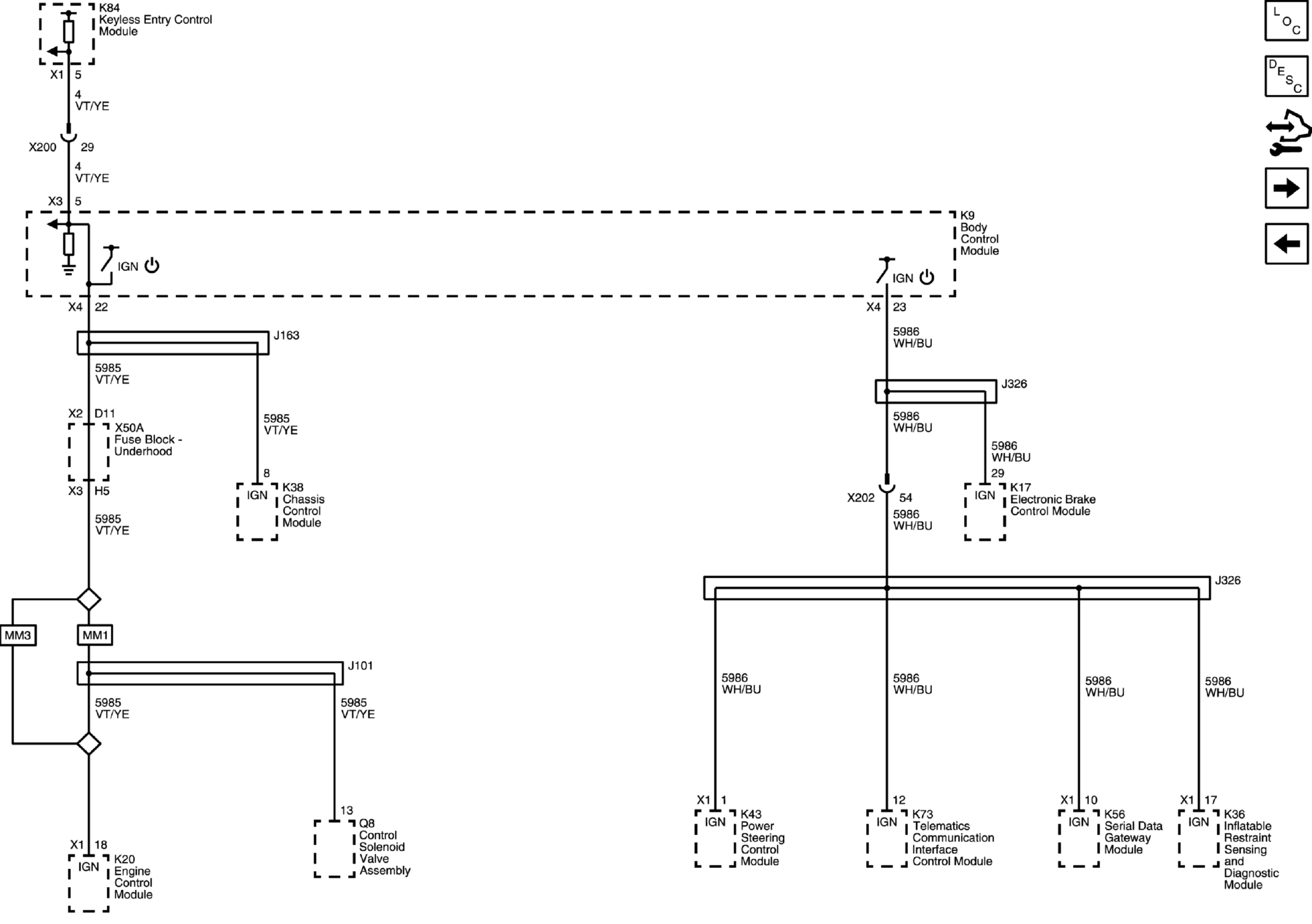

Communication Enable and Local Interconnect Network (-ATH/AVJ+BTM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
