K73 Telematics Communication Interface Control Module X4 (UE1-VV4)
 Courtesy of GENERAL MOTORS COMPANY
|

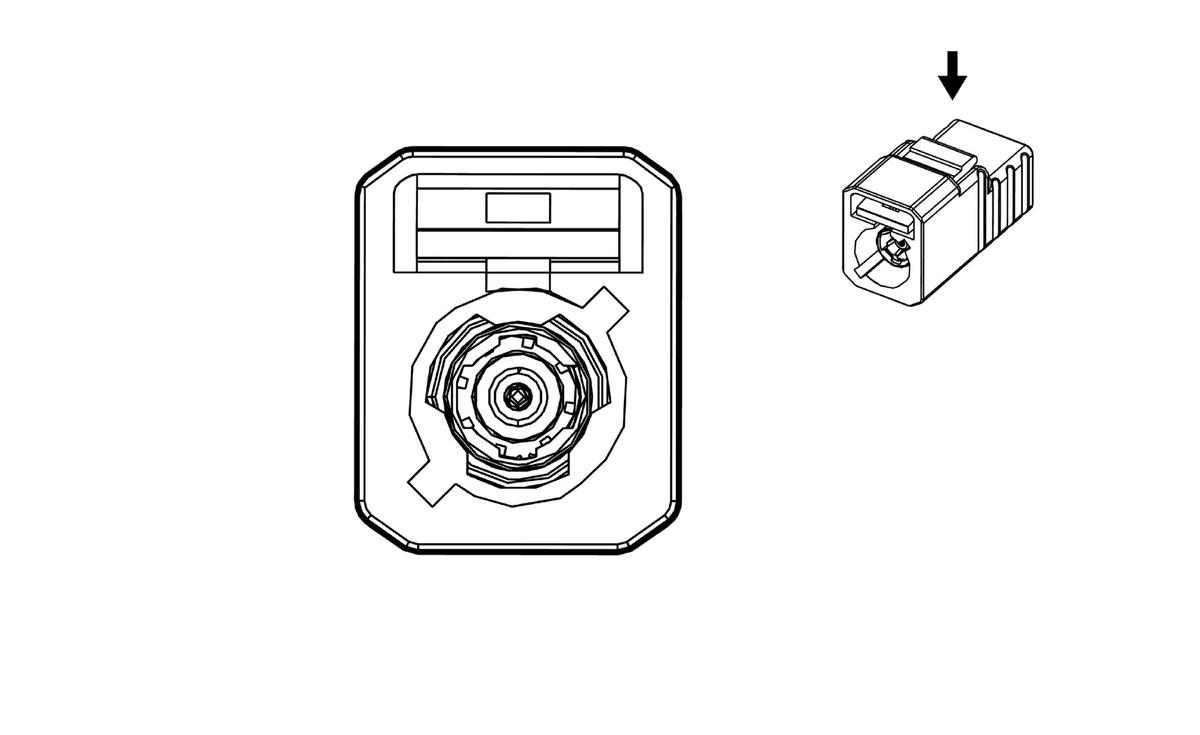

Connector Part Information
- Harness Type: Body
- OEM Connector: 42366155
- Service Connector: Service by Cable Assembly
- Description: 1-Way F (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
- |
No Tool Required |
No Tool Required |
- |
- |
- |
- |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| BU |
- |
- |
COAX |
Coax Cable |
I |
- |
