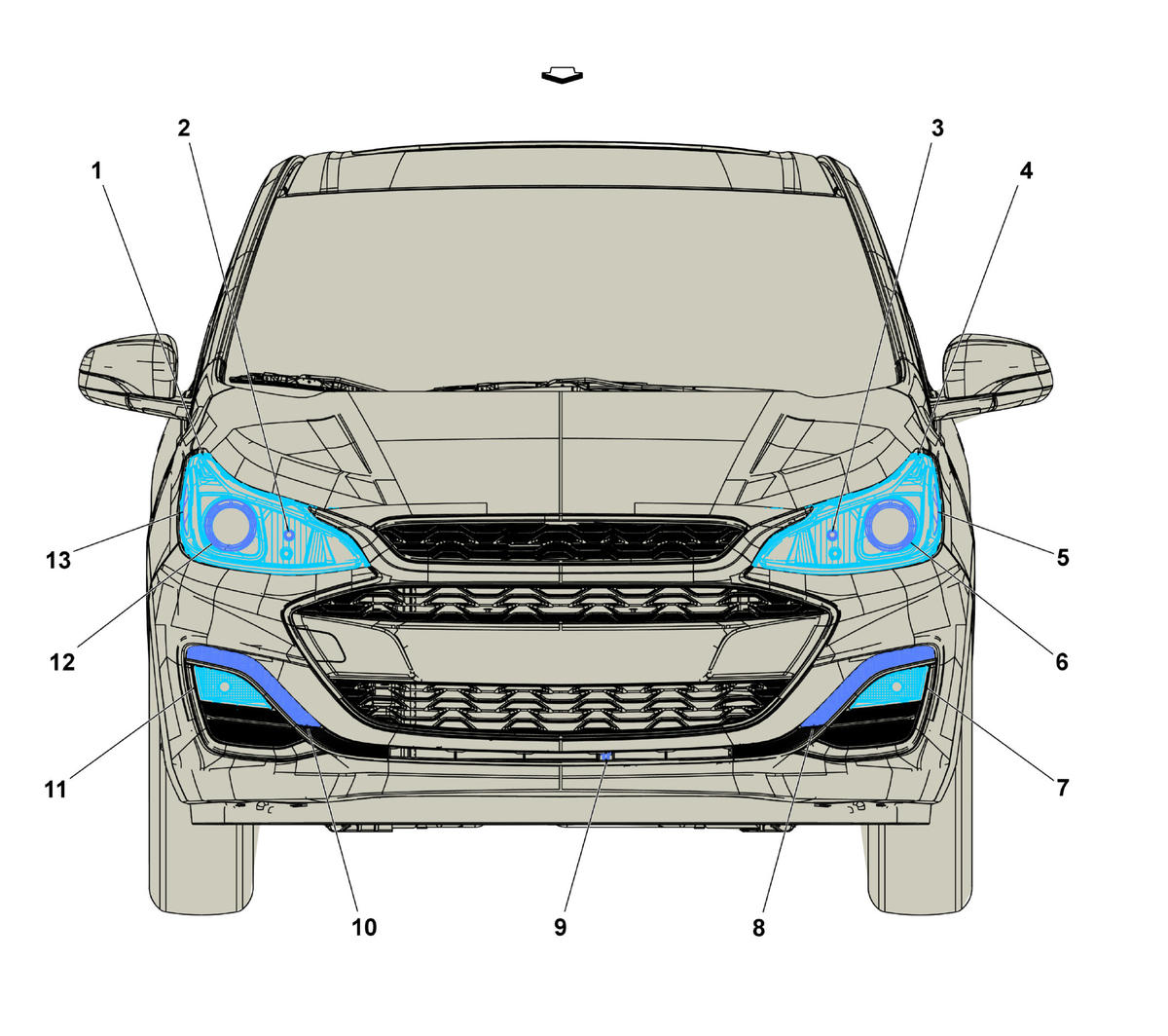

Front of the Vehicle Components (SBW)
 Courtesy of GENERAL MOTORS COMPANY
|
Front of the Vehicle Components (SBW)
| Items |
| 1. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (SBV+WJY+MCX)
, or E13RA Headlamp Assembly - Right (SBW+T3N+MAH/MBC)
, or E13RA Headlamp Assembly - Right (SBW+T3N+TR6-MAH/MBC/WJY)
, or E13RA Headlamp Assembly - Right (SBW+T7E+MAH/MBC) |
| 2. E4F Headlamp - Right High Beam |
| 3. E4E Headlamp - Left High Beam |
| 4. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (SBV+WJY+MCX)
, or E13LA Headlamp Assembly - Left (SBW+T3N+MAH/MBC)
, or E13LA Headlamp Assembly - Left (SBW+T3N+TR6-MAH/MBC/WJY)
, or E13LA Headlamp Assembly - Left (SBW+T3N-TR6/MAH/MBC/WJY)
, or E13LA Headlamp Assembly - Left (SBW+T7E+MAH/MBC)
, or E13LA Headlamp Assembly - Left (SBW+T7E-TR6/MAH/MBC/WJY) |
| 5. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front (SBM+T3W+WJY+(MAH/MBC)) |
| 6. E4G Headlamp - Left Low Beam |
| 7. E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (-TUJ) |
| 8. E4AC Park/Daytime Running Lamp - Left E4AC Park/Daytime Running Lamp - Left (SBW+T3N)
, or E4AC Park/Daytime Running Lamp - Left (SBW+T7E) |
| 9. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 10. E4AD Park/Daytime Running Lamp - Right E4AD Park/Daytime Running Lamp - Right (SBW+T3N)
, or E4AD Park/Daytime Running Lamp - Right (SBW+T7E) |
| 11. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (-TUJ) |
| 12. E4H Headlamp - Right Low Beam |
| 13. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front (SBM+T3W+WJY+(MAH/MBC)) |
