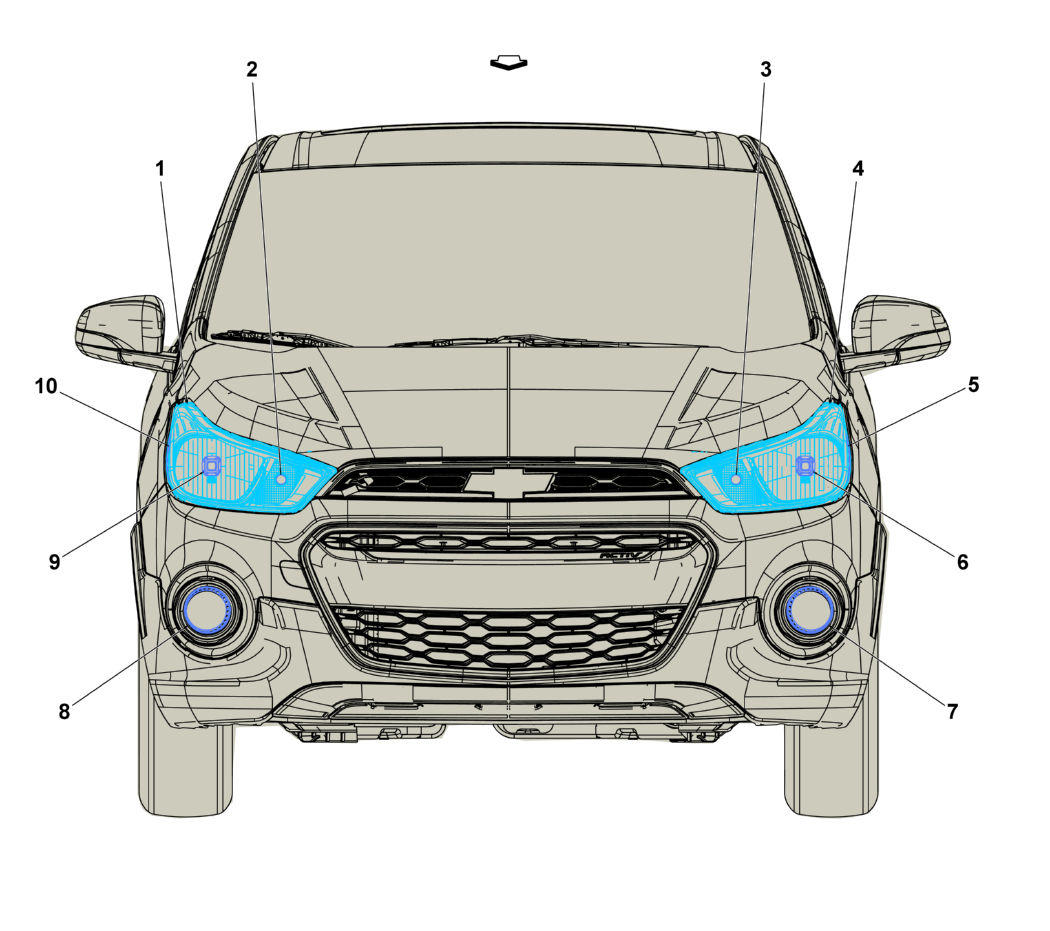

Front of the Vehicle Components (SBM+T3U)
 Courtesy of GENERAL MOTORS COMPANY
|
Front of the Vehicle Components (SBM+T3U)
| Items |
| 1. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (SBV+WJY+MCX)
, or E13RA Headlamp Assembly - Right (SBW+T3N+MAH/MBC)
, or E13RA Headlamp Assembly - Right (SBW+T3N+TR6-MAH/MBC/WJY)
, or E13RA Headlamp Assembly - Right (SBW+T7E+MAH/MBC) |
| 2. E4P Park/Turn Signal Lamp - Right |
| 3. E4N Park/Turn Signal Lamp - Left |
| 4. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (SBV+WJY+MCX)
, or E13LA Headlamp Assembly - Left (SBW+T3N+MAH/MBC)
, or E13LA Headlamp Assembly - Left (SBW+T3N+TR6-MAH/MBC/WJY)
, or E13LA Headlamp Assembly - Left (SBW+T3N-TR6/MAH/MBC/WJY)
, or E13LA Headlamp Assembly - Left (SBW+T7E+MAH/MBC)
, or E13LA Headlamp Assembly - Left (SBW+T7E-TR6/MAH/MBC/WJY) |
| 5. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front (SBM+T3W+WJY+(MAH/MBC)) |
| 6. E13L Headlamp - Left E13L Headlamp - Left (SBM+T3W+WJY+(MAH/MBC))
, or E13L Headlamp - Left (SBM+TUJ) |
| 7. E29LF Fog Lamp - Left Front (T87) E29LF Fog Lamp - Left Front (T3U) |
| 8. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front (T3U) |
| 9. E13R Headlamp - Right E13R Headlamp - Right (SBM+T3W+WJY+(MAH/MBC))
, or E13R Headlamp - Right (SBM+TUJ) |
| 10. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front (SBM+T3W+WJY+(MAH/MBC)) |
