Rear of Front Fascia Components (T7E+BOP)

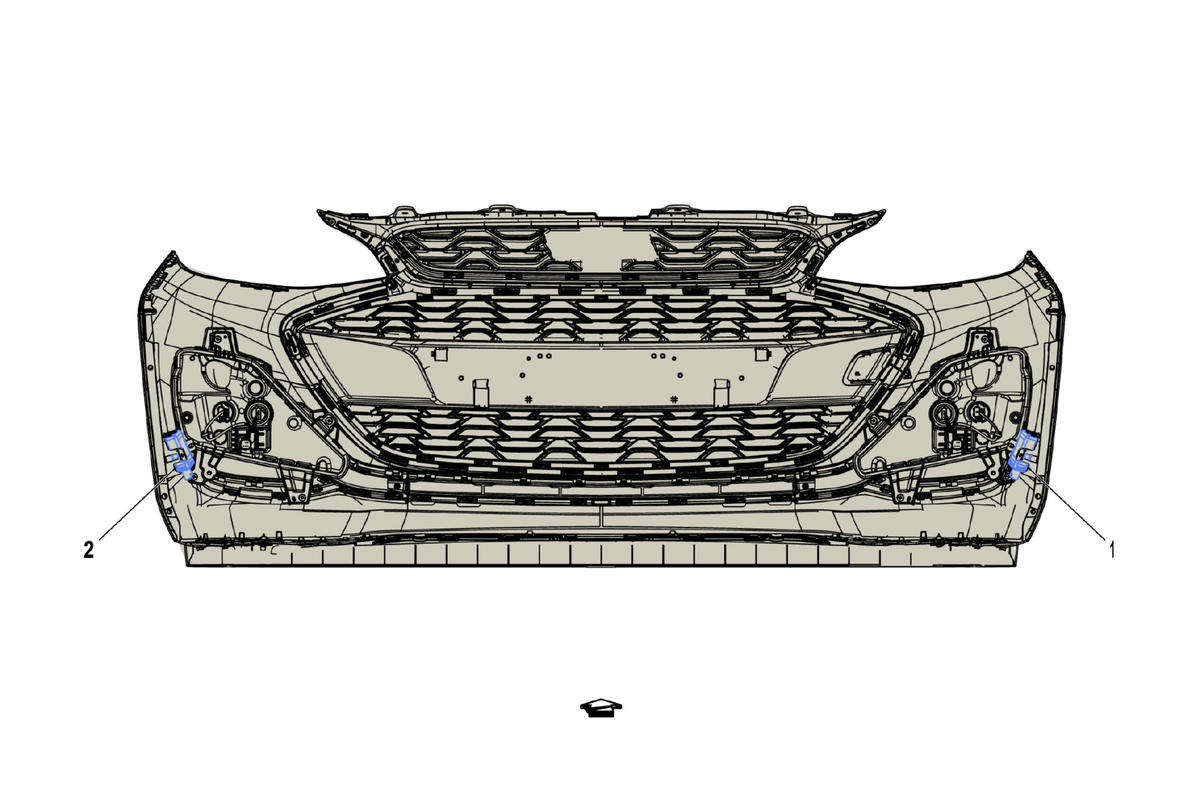

GM5309776Courtesy of GENERAL MOTORS COMPANY
Rear of Front Fascia Components (T7E+BOP)

Items
1. E69L Multifunction Lamp Assembly - Front Fascia Left
2. E69R Multifunction Lamp Assembly - Front Fascia Right
3. B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 (BOP) B342C UHF Low Energy Remote Control Access Sensor Transceiver 3 (BOP)
4. B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 (BOP) B342A UHF Low Energy Remote Control Access Sensor Transceiver 1 (BOP)
