Front of the Vehicle Components (SBV+T3U)

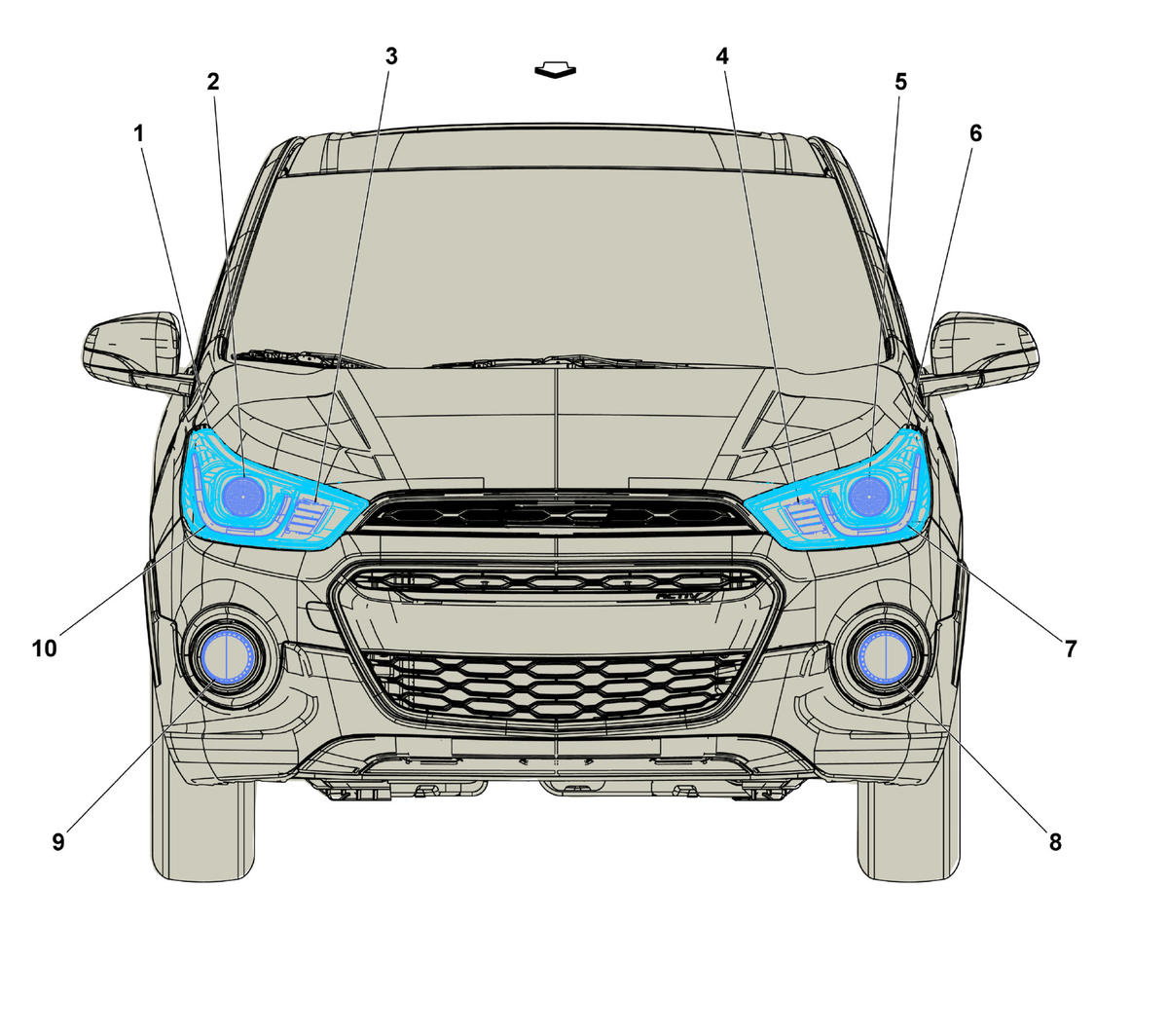

GM5309768Courtesy of GENERAL MOTORS COMPANY
Front of the Vehicle Components (SBV+T3U)

Items
1. E13RA Headlamp Assembly - Right E13RA Headlamp Assembly - Right (SBV+WJY+MCX) , or E13RA Headlamp Assembly - Right (SBW+T3N+MAH/MBC) , or E13RA Headlamp Assembly - Right (SBW+T3N+TR6-MAH/MBC/WJY) , or E13RA Headlamp Assembly - Right (SBW+T7E+MAH/MBC)
2. E4H Headlamp - Right Low Beam
3. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (-TUJ)
4. E4LF Turn Signal Lamp - Left Front E4LF Turn Signal Lamp - Left Front (-TUJ)
5. E4G Headlamp - Left Low Beam
6. E13LA Headlamp Assembly - Left E13LA Headlamp Assembly - Left (SBV+WJY+MCX) , or E13LA Headlamp Assembly - Left (SBW+T3N+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T3N+TR6-MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T3N-TR6/MAH/MBC/WJY) , or E13LA Headlamp Assembly - Left (SBW+T7E+MAH/MBC) , or E13LA Headlamp Assembly - Left (SBW+T7E-TR6/MAH/MBC/WJY)
7. E4AC Park/Daytime Running Lamp - Left E4AC Park/Daytime Running Lamp - Left (SBW+T3N) , or E4AC Park/Daytime Running Lamp - Left (SBW+T7E)
8. E29LF Fog Lamp - Left Front (T87) E29LF Fog Lamp - Left Front (T3U)
9. E29RF Fog Lamp - Right Front (T87) E29RF Fog Lamp - Right Front (T3U)
10. E4AD Park/Daytime Running Lamp - Right E4AD Park/Daytime Running Lamp - Right (SBW+T3N) , or E4AD Park/Daytime Running Lamp - Right (SBW+T7E)
