UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac)

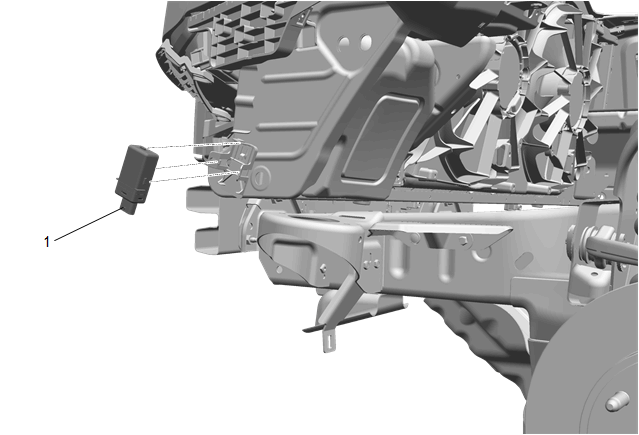

1	UHF Low Energy Remote Control Access Sensor Transceiver Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement (GMC)Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Cadillac)

UHF Low Energy Remote Control Access Sensor Transceiver

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
