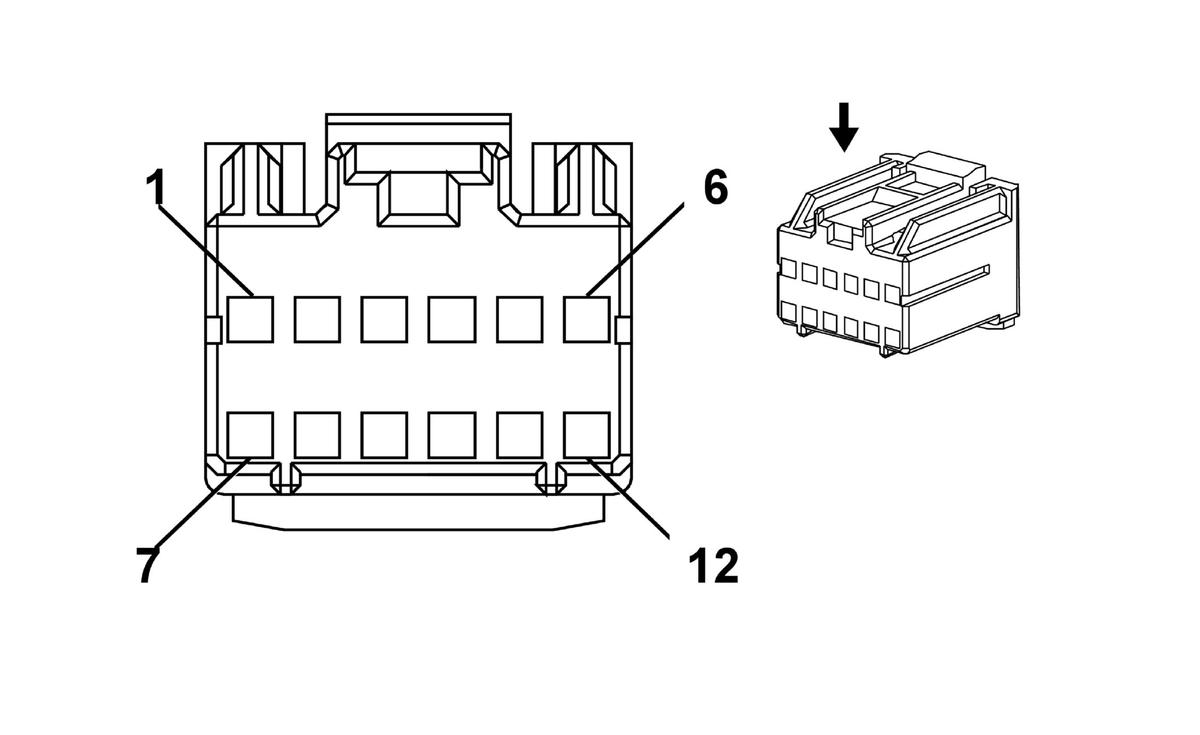

K73 Telematics Communication Interface Control Module X2 (W49)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 19153139
- Service Connector: 88952886
- Description: 12-Way F 040 Multilock II Series (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575803 |
J-35616-16 (LT GN) |
J-38125-559 |
15445905 |
Delphi 23 |
J |
J |
| II |
13575804 |
J-35616-16 (LT GN) |
J-38125-559 |
15445905 |
Delphi 23 |
J |
J |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
658 |
Cellular Telephone Voice Signal |
I |
- |
| 2 |
0.35 |
BK/YE |
659 |
Cellular Telephone Voice Low Reference |
I |
- |
| 3 |
0.35 |
BU/GN |
1304 |
High Speed GMLAN Serial Data (+)9 |
I |
- |
| 4 |
0.35 |
WH/GN |
1305 |
High Speed GMLAN Serial Data (-)9 |
I |
- |
| 5 |
0.5 |
BARE |
1792 |
Low Reference |
II |
- |
| 6 |
0.35 |
GY/YE |
5149 |
Voice Recognition Audio Signal |
I |
- |
| 7 |
0.35 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 8 |
0.5 |
BARE |
1782 |
Low Reference |
II |
- |
| 9 |
0.35 |
BU |
655 |
Cellular Telephone Microphone Signal |
I |
- |
| 10 |
0.35 |
BK/BN |
654 |
Cellular Telephone Microphone Low Reference |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BK/GY |
5152 |
Voice Recognition Audio Low Reference |
I |
- |
