Front of Vehicle Components (Trax)

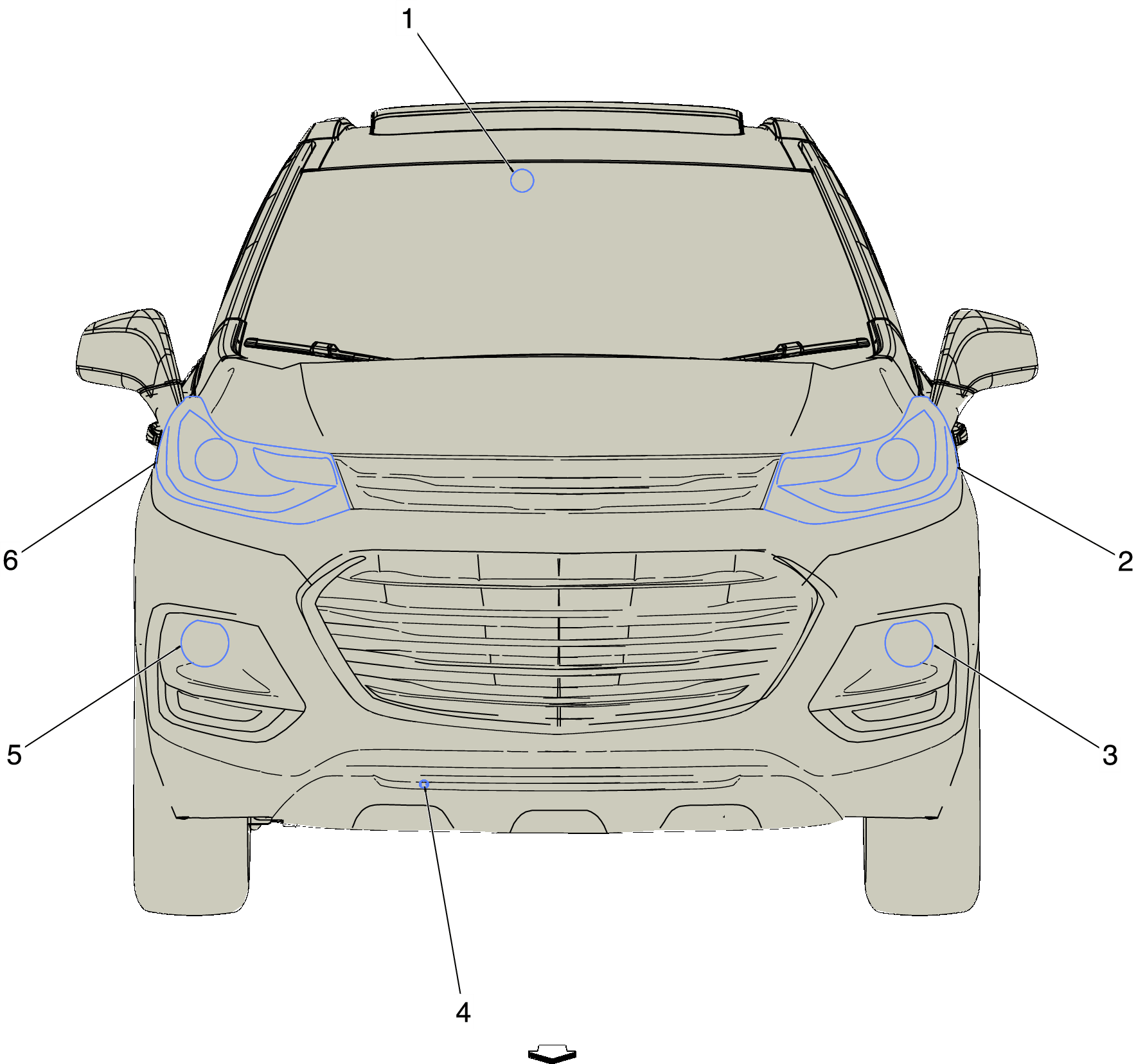

Fig 1: Front of Vehicle Components (Trax)
GM5130885Courtesy of GENERAL MOTORS COMPANY
Items
1. B174W Frontview Camera - Windshield (UFL) B174W Frontview Camera - Windshield (UFL)
2. E13LA Headlamp Assembly - Left
3. E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front
4. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-UGM)B9 Ambient Air Temperature Sensor (UGM)
5. E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U)
6. E13RA Headlamp Assembly - Right
