Foot Pedal Components (Trax)

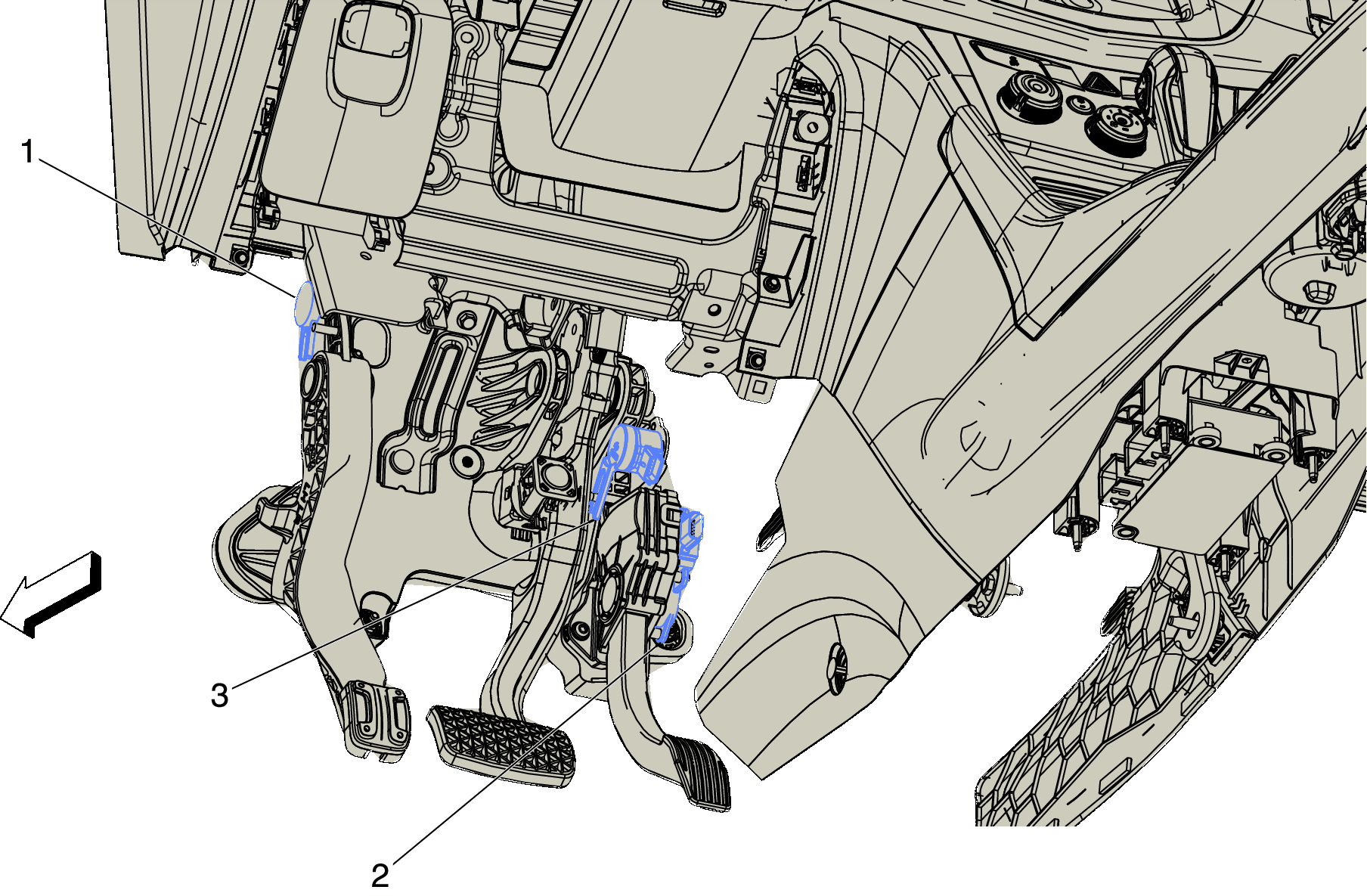

Fig 1: Foot Pedal Components (Trax)
GM3926982Courtesy of GENERAL MOTORS COMPANY
Items
1. B25B Clutch Pedal Position Sensor (M4P/MR5) B25B Clutch Pedal Position Sensor (MM3)
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
3. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MM1)B22 Brake Pedal Position Sensor (MM3)

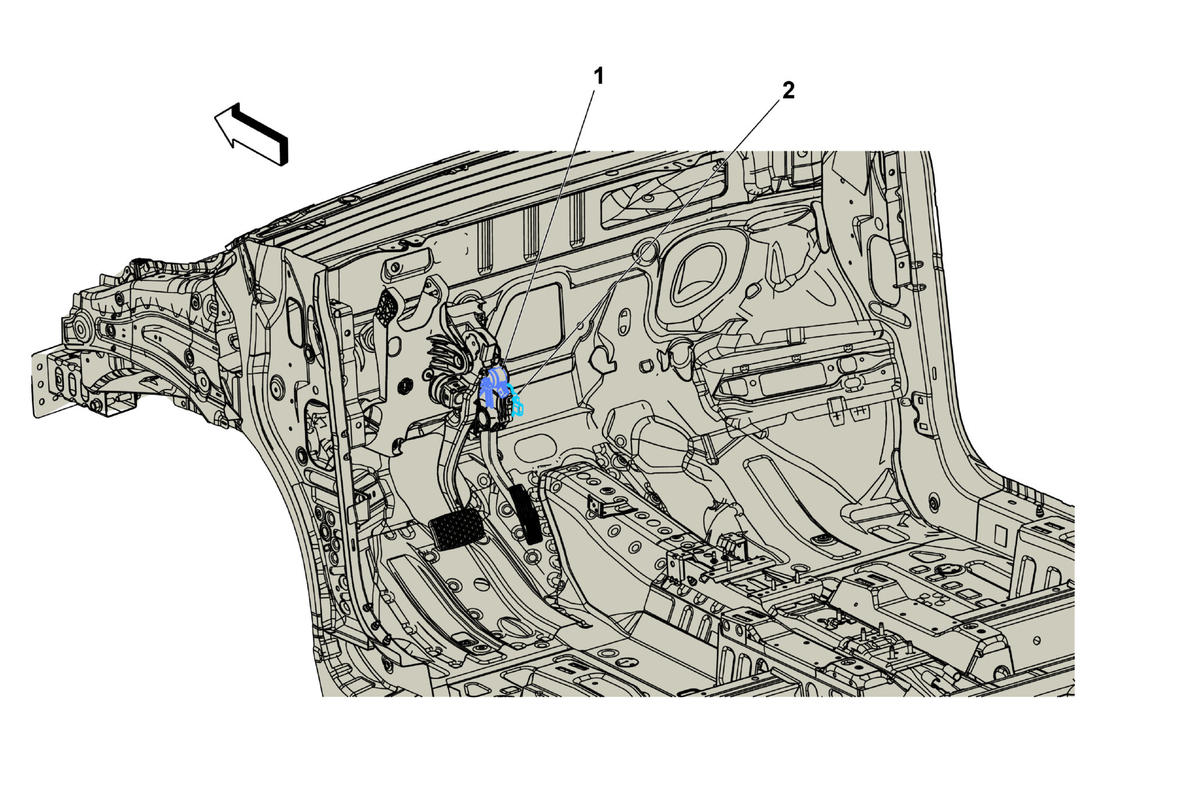

Fig 1: Foot Pedal Components (Trax)
GM3655008Courtesy of GENERAL MOTORS COMPANY
Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MM1)B22 Brake Pedal Position Sensor (MM3)
2. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
