Front of Instrument Panel (Trax)

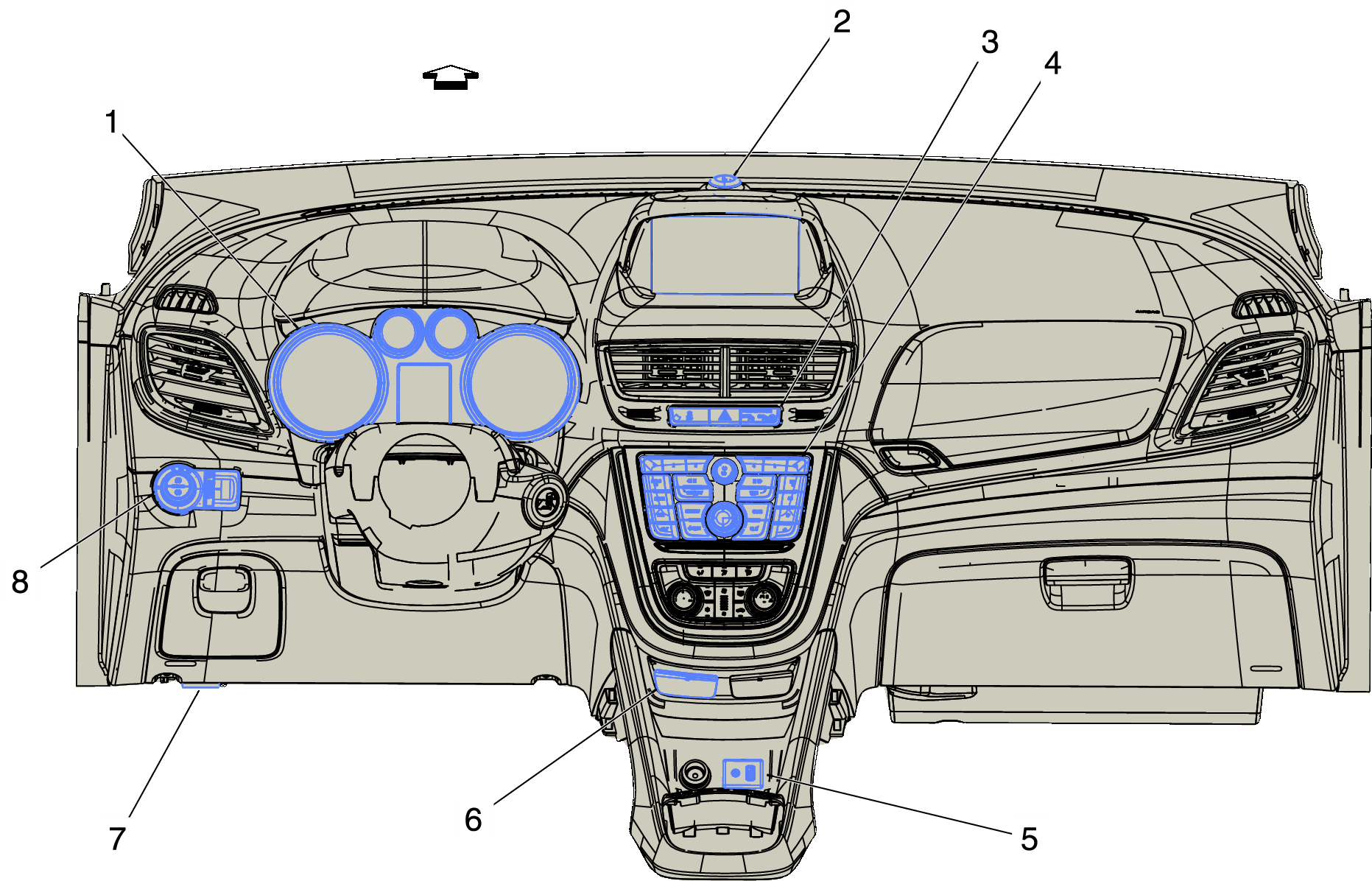

Fig 1: Front of Instrument Panel (Trax)
GM4555327Courtesy of GENERAL MOTORS COMPANY
Items
1. P16 Instrument Cluster P16 Instrument Cluster
2. B10B Ambient Light/Sunload Sensor (T83) B10B Ambient Light/Sunload Sensor
3. P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator (AL0/UH1)
4. A11 Radio A11 Radio X1 (IOA/IP1)A11 Radio X1 (IOR)A11 Radio X10 (UE1)A11 Radio X2 (IOA)A11 Radio X2 (IOR)A11 Radio X3 (IOA)A11 Radio X3 (IP1)A11 Radio X4 (IOR)A11 Radio X5 (IOR)A11 Radio X6 (U2Q)A11 Radio X8 (IP1)A11 Radio X9
5. X83 Auxiliary Audio Input (UF7/USR) X83 Auxiliary Audio Input X1 (USR/UST)X83 Auxiliary Audio Input X2 (USR/UST)
6. S155 Lane Departure Warning Switch (UFL) S155 Lane Departure Warning Switch (UFL)
7. X84 Data Link Connector X84 Data Link Connector
8. S30 Headlamp Switch S30 Headlamp Switch
