Rear of Instrument Panel Components (Trax, 1 of 2)

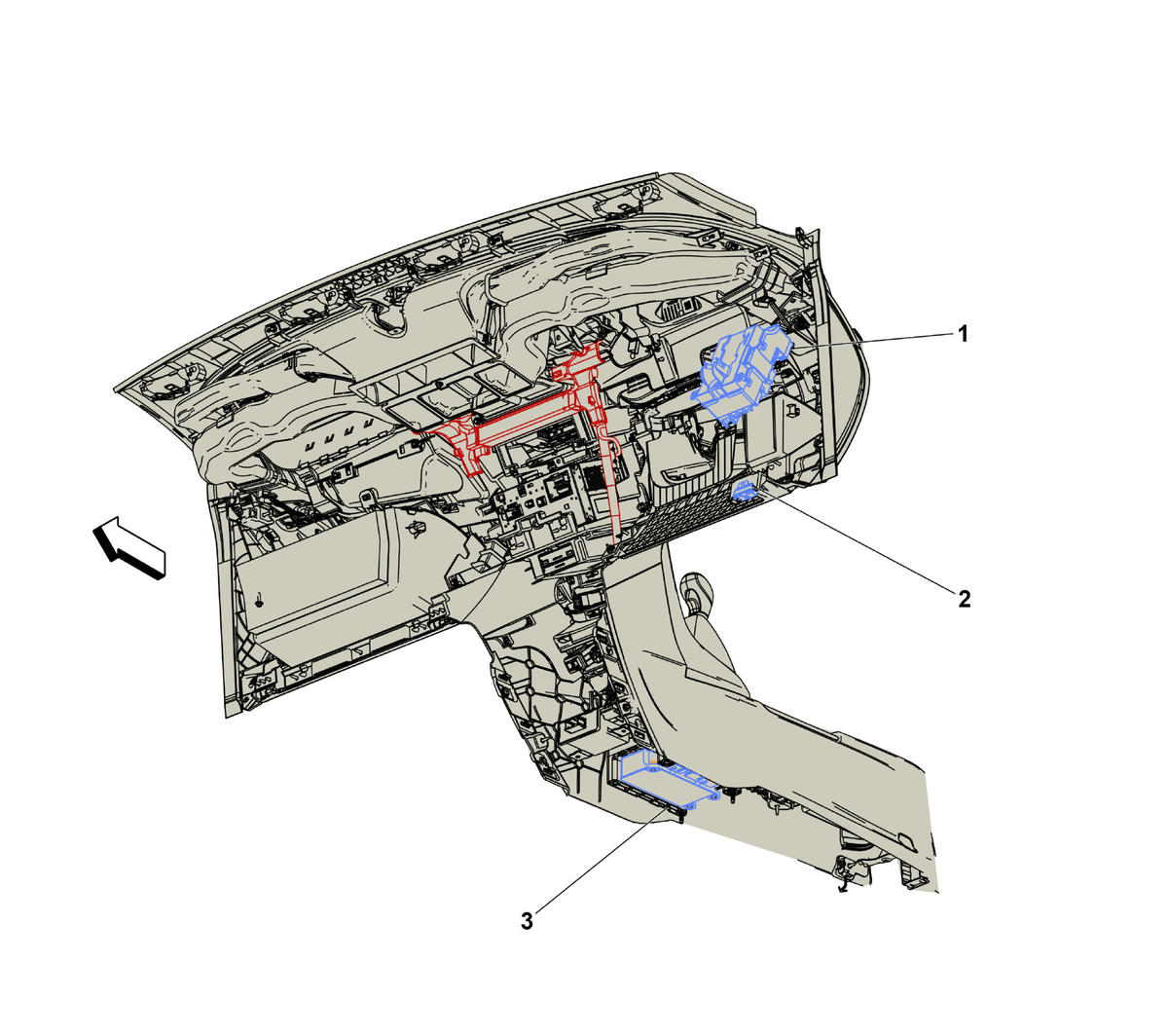

Fig 1: Rear of Instrument Panel Components (Trax, 1 of 2)
GM3683469Courtesy of GENERAL MOTORS COMPANY
Items
1. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel X0X51A Fuse Block - Instrument Panel, Wire Entry (Trax)
2. X84 Data Link Connector X84 Data Link Connector
3. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 (ADL/AJG/AYC)K36 Inflatable Restraint Sensing and Diagnostic Module X1 (AYF)K36 Inflatable Restraint Sensing and Diagnostic Module X2 (ADL)K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AYC)K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0/AYF)
