Engine Compartment Components - Front (3 of 4)

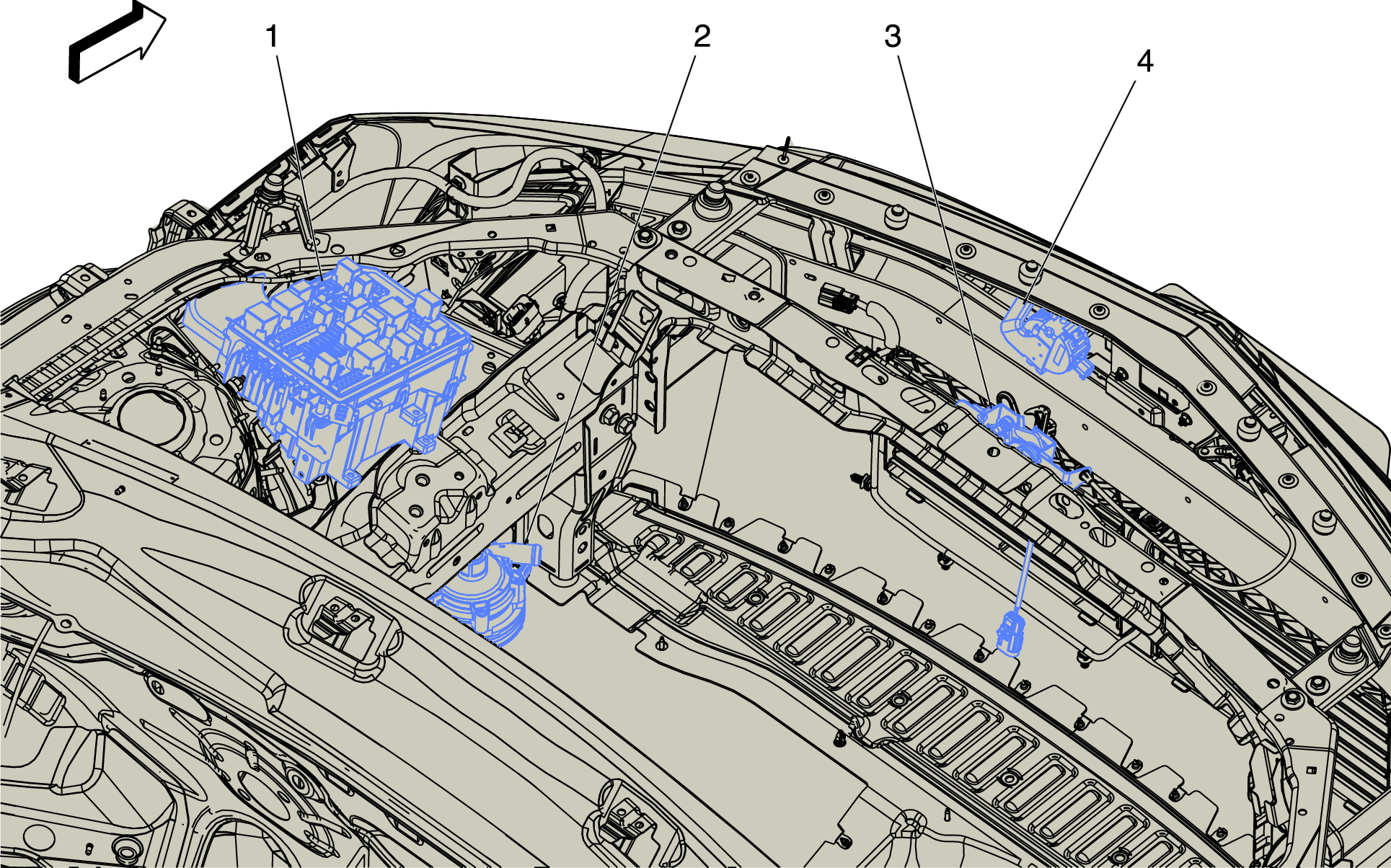

GM5147222Courtesy of GENERAL MOTORS COMPANY
Engine Compartment Components - Front (3 of 4)

Items
1. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 , or X50A Fuse Block - Underhood X2 , or X50A Fuse Block - Underhood X3 , or X50A Fuse Block - Underhood X4 ()
2. G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump
3. B55 Engine Hood Switch B55 Engine Hood Switch
4. P48F Pedestrian Alert Sound Speaker - Front P48F Pedestrian Alert Sound Speaker - Front
